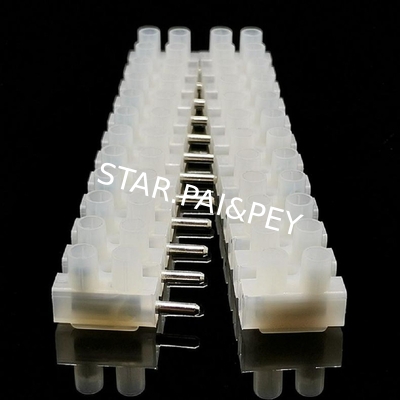

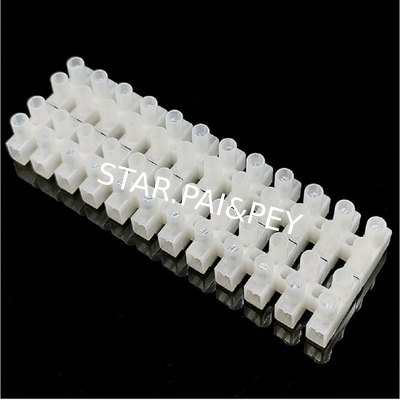

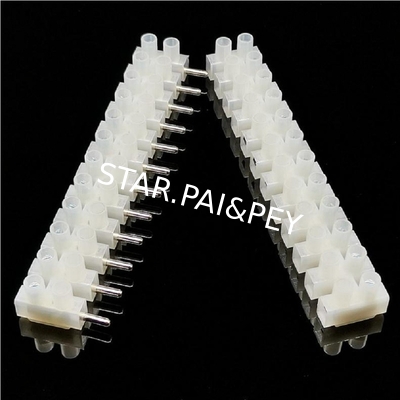

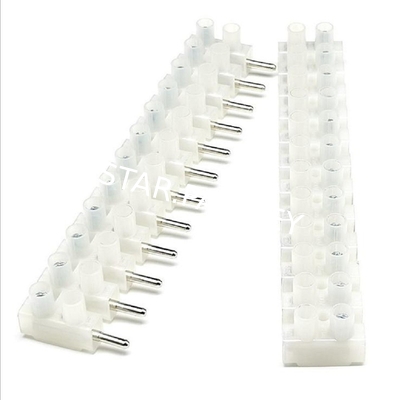

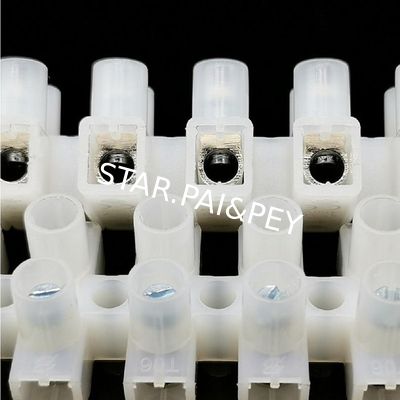

FeedThrough Male & Female screw terminal block LED lighting lamp connector | Pitch: 10.00mm | Part No.PH10FM

FeedThrough Male & Female screw terminal block LED lighting lamp connector | Pitch: 10.00mm | Part No.PH10FM
FeedThrough Male & Female screw terminal block LED lighting lamp connector | Pitch: 10.00mm | Part No.PH10FM FeedThrough Male & Female screw terminal block LED lighting lamp connector | Pitch: 10.00mm | Part No.PH10FM FeedThrough Male & Female screw terminal block LED lighting lamp connector | Pitch: 10.00mm | Part No.PH10FM FeedThrough Male & Female screw terminal block LED lighting lamp connector | Pitch: 10.00mm | Part No.PH10FM FeedThrough Male & Female screw terminal block LED lighting lamp connector | Pitch: 10.00mm | Part No.PH10FM FeedThrough Male & Female screw terminal block LED lighting lamp connector | Pitch: 10.00mm | Part No.PH10FM

Large Image :  FeedThrough Male & Female screw terminal block LED lighting lamp connector | Pitch: 10.00mm | Part No.PH10FM Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: STARPAI
Certification: EC,UL,Rohs
Model Number: PH10FM
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD0.1/pos
Packaging Details: bag
Delivery Time: 15-25 days after 100% T/T payment
Supply Ability: 10000pcs / month
Contact Now
Detailed Product Description
Pitch: 10.0mm Voltage: 750V
Current Rating: 28A

Materials and specifications
Plastic parts: PC UL94V - 0
Terminal: brass, Tin plating

Wire protector,Sping
Screw: steel, M2.5 nickel plating


performance

Pitch:10.0 mm
Rated voltage/current: 750 V/ 28 A
Temperature: - 40 ℃ ~ + 105 ℃
The withstand voltage: AC2500V/Min
Insulation resistance: 800 mΩ / DC1000V

Wire range:20-12 AWG
