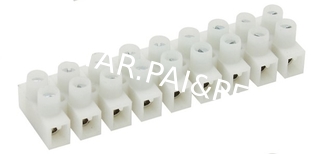

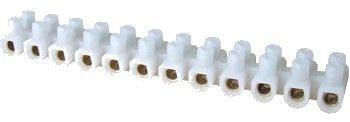

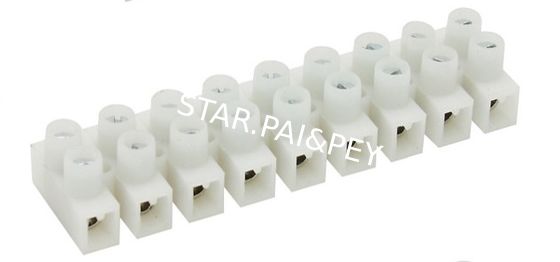

Europe Through Terminal Block without wire protector(2P-12P) PH12 Pin pitch: 12.0mm

Europe Through Terminal Block without wire protector(2P-12P) PH12 Pin pitch: 12.0mm

Europe Through Terminal Block without wire protector(2P-12P) PH12 Pin pitch: 12.0mm
Europe Through Terminal Block without wire protector(2P-12P) PH12 Pin pitch: 12.0mm Europe Through Terminal Block without wire protector(2P-12P) PH12 Pin pitch: 12.0mm

Large Image :  Europe Through Terminal Block without wire protector(2P-12P) PH12 Pin pitch: 12.0mm Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: STARPAI
Certification: EC,UL,Rohs
Model Number: PH12
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1USD/pcs
Packaging Details: Packing
Delivery Time: 25 days after 100% T/T payment
Payment Terms: T/T
Supply Ability: 100000K/pcs
Detailed Product Description

Materials and specifications
Plastic parts: PC UL94V - 0
Terminal: brass, Tin plating
Screw: steel, M4 nickel plating


performance

Pitch:12.0 mm
Rated voltage/current: 750 V/ 41A
Temperature: - 40 ℃ ~ + 105 ℃
The withstand voltage: AC2500V/Min
Insulation resistance: 800 mΩ / DC1000V

Wire range:20-12 AWG



Model Wire mm² UL ICE Screw Dimensions(mm/in)
Volt Amp Volt Amp Unit A B C D E F
PH8 2.5 600V 20A 450V 24A M2.5x5 mm 94.0 17.0 17.30 8.20 3.00 2.80
PH10 6.0 600V 28A 750V 24A M3.0x6 mm 116.7 20.3 20.30 10.00 3.50 3.20
PH12 6.0 600V 41A 750V 45A M3.5x7 mm 139.7 24.0 22.10 12.00 3.90 3.90
PH14 10.0 600V 50A 750V 57A M4.0x9 mm 157.9 25.4 27.90 13.50 4.30 4.60
PH16 16.0 600V 65A 750V 76A M4.0x9 mm 171.3 32.0 28.10 14.60 4.40 4.80
