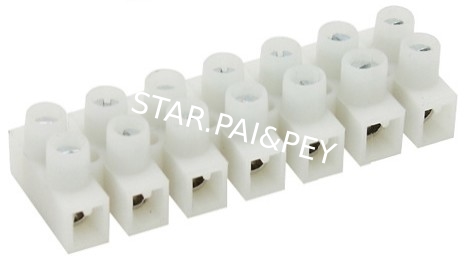

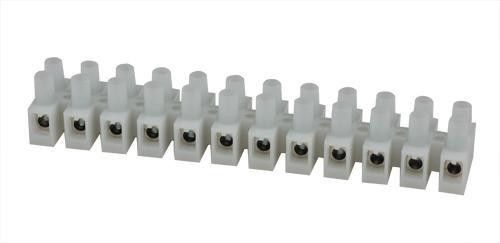

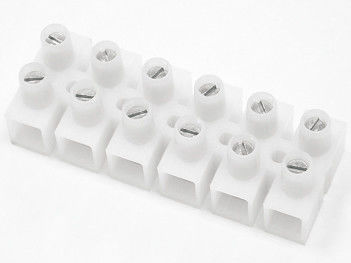

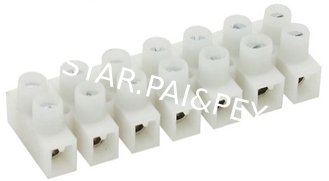

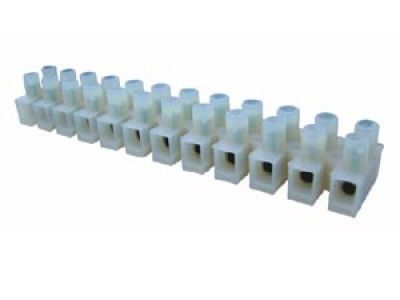

FeedThrough Terminal block(2P-12P) without wire protector | Pitch: 8.00mm | Part No.PH8

FeedThrough Terminal block(2P-12P) without wire protector | Pitch: 8.00mm | Part No.PH8
FeedThrough Terminal block(2P-12P) without wire protector | Pitch: 8.00mm | Part No.PH8 FeedThrough Terminal block(2P-12P) without wire protector | Pitch: 8.00mm | Part No.PH8 FeedThrough Terminal block(2P-12P) without wire protector | Pitch: 8.00mm | Part No.PH8 FeedThrough Terminal block(2P-12P) without wire protector | Pitch: 8.00mm | Part No.PH8

Large Image :  FeedThrough Terminal block(2P-12P) without wire protector | Pitch: 8.00mm | Part No.PH8 Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: STARPAI
Certification: EC,UL,Rohs
Model Number: PH8
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD0.1/pos
Packaging Details: bag
Delivery Time: 15-25 days after 100% T/T payment
Supply Ability: 10000pcs / month
Contact Now
Detailed Product Description
Pitch: 8.0mm Voltage: 300V
Current Rating: 10A

Materials and specifications
Plastic parts: PC UL94V - 0
Terminal: brass, Tin plating
Screw: steel, M2.5 nickel plating


performance

Pitch:8.0 mm
Rated voltage/current: 750 V/ 24 A
Temperature: - 40 ℃ ~ + 105 ℃
The withstand voltage: AC2500V/Min
Insulation resistance: 800 mΩ / DC1000V

Wire range:20-12 AWG
Model Wire mm² UL ICE Screw Dimensions(mm/in)
Volt Amp Volt Amp Unit A B C D E F
PH8 2.5 600V 20A 450V 24A M2.5x5 mm 94.0 17.0 17.30 8.20 3.00 2.80
PH10 6.0 600V 28A 750V 24A M3.0x6 mm 116.7 20.3 20.30 10.00 3.50 3.20
PH12 6.0 600V 41A 750V 45A M3.5x7 mm 139.7 24.0 22.10 12.00 3.90 3.90
PH14 10.0 600V 50A 750V 57A M4.0x9 mm 157.9 25.4 27.90 13.50 4.30 4.60
PH16 16.0 600V 65A 750V 76A M4.0x9 mm 171.3 32.0 28.10 14.60 4.40 4.80

If you can't find the exact product you need in the pictures, please don't go away.

Just contact us freely or send your sample and drawing to us.

We will reply you as soon as possible.
