DB50 Male Header Breakout Board Terminal Block Connector Electronics-Salon Breakout Board

Name: DB50 Male Header Breakout Board Terminal Block Connector Electronics-Salon Breakout Board
Brand: starpai
SKU: QXDB-DB50
Price: 18 USD
Availability: InStock
Rating: 4.6 (174 reviews)

Large Image : DB50 Male Header Breakout Board Terminal Block Connector Electronics-Salon Breakout Board Get Best Price

Product Details:

Place of Origin:	Shenzhen
Brand Name:	starpai
Certification:	UL,Rohs
Model Number:	QXDB-DB50

Payment & Shipping Terms:

Minimum Order Quantity:	100 sets
Price:	US 18per sets
Packaging Details:	bag
Delivery Time:	20-25 work days
Payment Terms:	T/T, MoneyGram, Western Union
Supply Ability:	5000 sets per month

Contact Now

Detailed Product Description

DUSB:	DB50	Terminal Block Pitch:	3.81mm
Rated Voltage:	60V	Rated Current:	1A

Product description

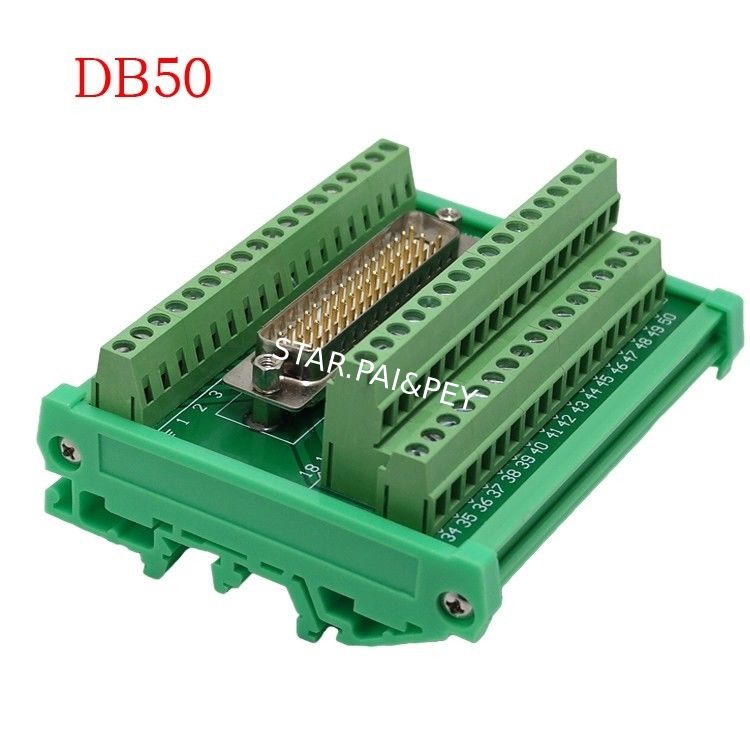

DB50 Male Header Breakout Board Terminal Block Connector Electronics-Salon Breakout Board 0

DIN Rail Mount DB50HD(High Density) Male Interface Module.

DB26 female header connector, pitch 2.29mm
Pitch 3.81mm/0.15" screw terminal block.

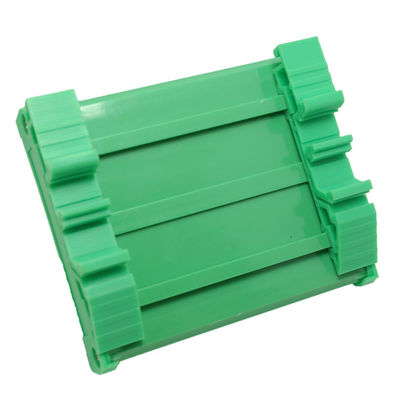

High quality DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
Dimensions: 108mm x85mm x 53mm(W x L x H).
100% new, never used.

Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.

Other D-SUB modules (DB9 15 15HD 25 26HD 37 44HD 50 62HD 78HD), please visit our website.
