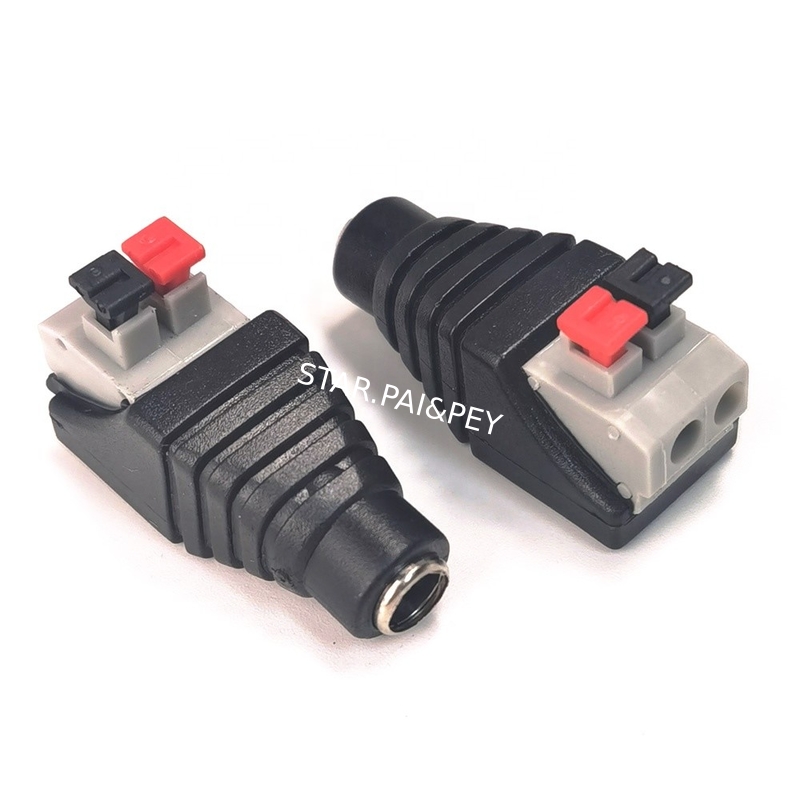

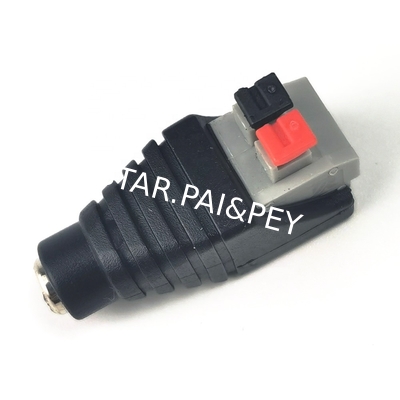

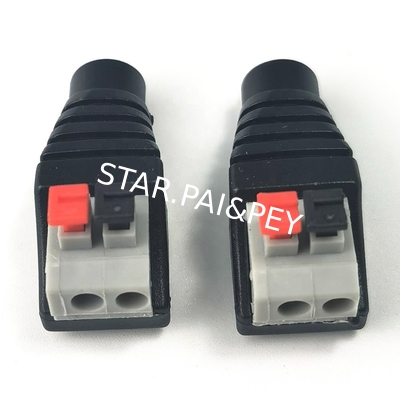

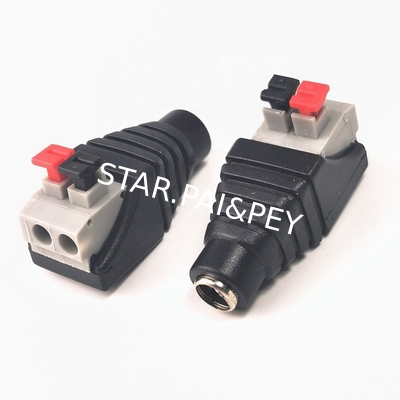

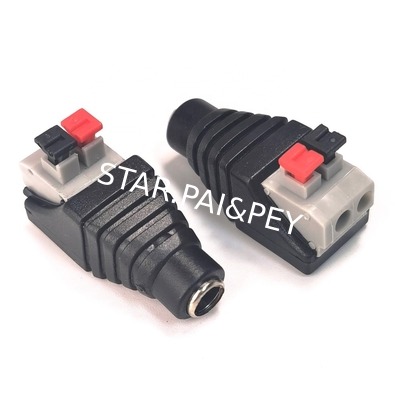

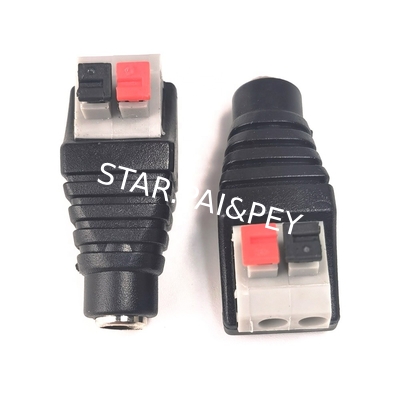

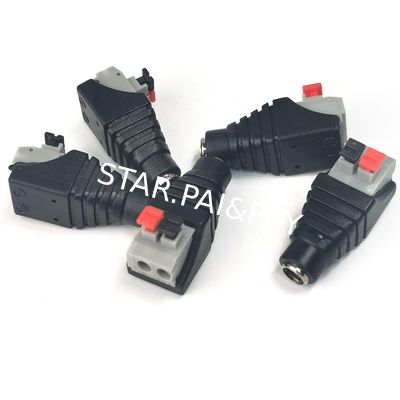

2.1mm x 5.5mm DC female terminal block with push down connection



- DC low-voltage coupling "SOCKET" 5.5mm / 2.1mm on 2-pin terminal block with push-down terminal connection
- Assignment: positive pole inside, minus outside
- Contact spacing: approx. 5mm
- External pin diameter in DC SOCKET: 2.1mm
- Inside diameter DC socket: 5.5mm
- Pin length in DC socket: approx. 10mm
- Total length of the connector: approx. 39mm
- Max.permissible load: 6A
- Maximum cable cross-section at the luster terminal: 1.5mm²



CDesign	Low voltage coupling
Connection 1	Pin outer 2.1mm
Connection socket inner	5.5mm
Voltage	12V DC
Current	6A
Connection 2	Terminal block 2pin
ROHS	YES

---------------------------------
