Signals Breakout Board Serial Port Header DB25 Male / Female terminal block adapter

Signals Breakout Board Serial Port Header DB25 Male / Female terminal block adapter

Signals Breakout Board Serial Port Header DB25 Male / Female terminal block adapter
Signals Breakout Board Serial Port Header DB25 Male / Female terminal block adapter

Large Image :  Signals Breakout Board Serial Port Header DB25 Male / Female terminal block adapter Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: STARPAI
Certification: EC,UL,Rohs
Model Number: DB15
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 39.8 USD/PCS
Packaging Details: Packing
Delivery Time: 25 days after 100% T/T payment
Payment Terms: T/T
Supply Ability: 100000K/pcs
Detailed Product Description
Material: Poly-amide UL94-V0 Type: DB25

DB25 female to terminal









Signals Breakout Board Serial Port Header DB25 Male / Female terminal block adapter 0

Signals Breakout Board Serial Port Header DB25 Male / Female terminal block adapter 1

    Signals Breakout Board Serial Port Header DB25 Male / Female terminal block adapter 2

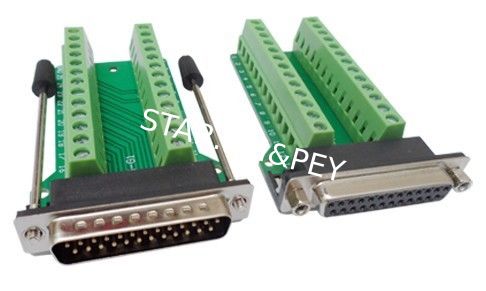

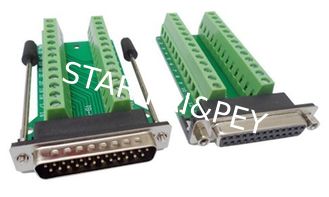

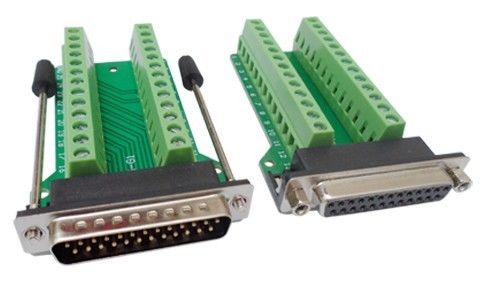

The female DB-25 to 25-position terminal block adapter provides connection points for all of the DB-25s pins and the protective ground.

They can be used for practically any application requiring a female / male DB-25 connector.

Specifications & Features:

Female / Male DB-25 connector

25-Position terminal block accepts 14-30 AWG solid or stranded wire

Connection points are labeled with pin number

Can be used for practically any application requiring a female / male DB-25 connector

Supports non-standard AMX & Crestron control ports

No soldering or crimping required

Cost effective and reliable cable termination

Terminal blocks spacing 5MM, screw hole diameter 2MM, need to use a width of 2MM screwdriver for assembly



Signals Breakout Board Serial Port Header DB25 Male / Female terminal block adapter 3



Default Package included :

1 pair ( 1* female DB25 adapter +1* male DB25 adapter)

Note: if you need 2 pieces of Male DB25 or 2 pieces of Female DB25, Please leave a message
