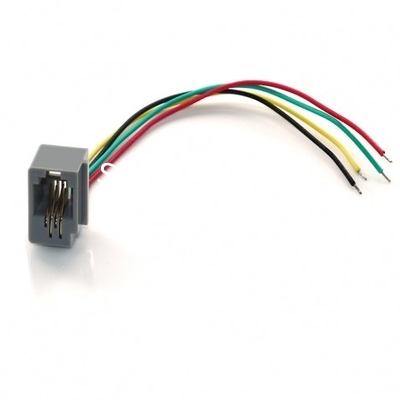

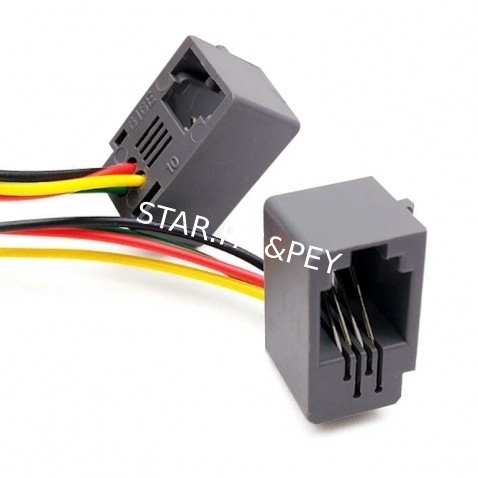

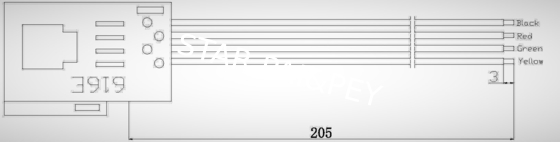

616E 4P4C Terminals Exapansion Cable Length:205mm or by customered
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Cable Length: | 205cm Or Other | Application: | Audio & Automation |
|---|---|---|---|
| Gender: | Free |
MATERIAL
HOUSING: ABS,UL94V-O,BLACK.
TERMINAL:PHOSPHOR BRONZE Φ=0.46MM,3U" GOLD PLATING.
MACHANICAL
HOUSING: ABS,UL94V-O,BLACK.
DURABILITY: 750 CYCLES MIN,12.5MM/MINUTE.
INSERTION FORCE:2.2KG.F MAX.
RETENTION STRENGTH :7.7KG.F BETWEEN JACK AND PLUG.
OPERATING TEMPERATURE:-40~+85℃.
STORAGE TEMPERATURE:-40C~+85C.ALL CRITICAL DIMENSIONS
ELECTRICAL:
vOLTAGE:125V AC.
CURRENT RATING :1.5AMP.
DIELECTRIC STRENGTH :1000 VAC RMS 50HZ. OR 60HZ,1MIN.
INSULATIONRESISTANCE:500 MEGA OHMS MIN.INITIAL AFTER 500V DC FOR 1 MINUTE.
CONTACT RESISTANCE: SINGLE TERMINAL 30 MILLIOHMS MAX. INITIAL 50 MILLIOHMS MAX.AFTERDURABILITY TEST.
