Home Products-DIP Switch.Tact & ZIF Socket

Push button switch 16mm flattest metal Momentary waterproof 12V

Push button switch 16mm flattest metal Momentary waterproof 12V

Push button switch 16mm flattest metal Momentary waterproof 12V
Push button switch 16mm flattest metal Momentary waterproof 12V Push button switch 16mm flattest metal Momentary waterproof 12V Push button switch 16mm flattest metal Momentary waterproof 12V Push button switch 16mm flattest metal Momentary waterproof 12V Push button switch 16mm flattest metal Momentary waterproof 12V Push button switch 16mm flattest metal Momentary waterproof 12V

Large Image :  Push button switch 16mm flattest metal Momentary waterproof 12V Get Best Price

Product Details:
Place of Origin: Guangdong,China
Brand Name: StarPey
Certification: Rohs
Model Number: IB16T1-P10F-E RGB
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1
Packaging Details: Roll packing
Delivery Time: 15-25 work days
Payment Terms: Western Union, MoneyGram, L/C
Supply Ability: 1200000 pcs per moth
Detailed Product Description
Material: Metal Switch Combination: 1NO Normally Open
Max. Current: 2A OEM/ODM: YES

Specifications:

ON/OFF ILLUMINATED PUSH BUTTON SWITCH:
2/4 pin metal momentary auto reset push-button switch, push it, remain on, release the finger, get off. Mounting Hole:
12mm/16mm/19mm/22mm/25mm/30mm is optional
EASY TO CONNECT & DURABLE:
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
LIGHTED Slef reset PUSHBUTTON SWITCH:
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
WATERPROOF MARINE SWITCH:
This momentary push button switch can be used in a wet environment, no worry about rain or water anymore, which can be used outdoor and rainy day.
WIDE APPLICATION:
This 12V/24V push button switch is suitable for motorized vehicles of motor starting, power starting devices, and can also be an access control button.

Model Specification
Model NO.
T1 series push button switch
Mounting diameter
16mm
Head shape
Flat head
Switch Combination
1NO
Operation type
Momentary
Rated Current
2A 250VAC
Illuminating type
Ring LED
Illuminating color
Red,green,blue,yellow,orange,white,purple
Lamp voltage
2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell material
Brass nickel,Stainless steel,aluminum oxide
Contact Resistance
50mΩ max
Insulation Resistance
1000MΩ Min
Dielectric Intensity
2000VAC
Accessories
Nut, Rubber Waterproof O-ring



Details Images

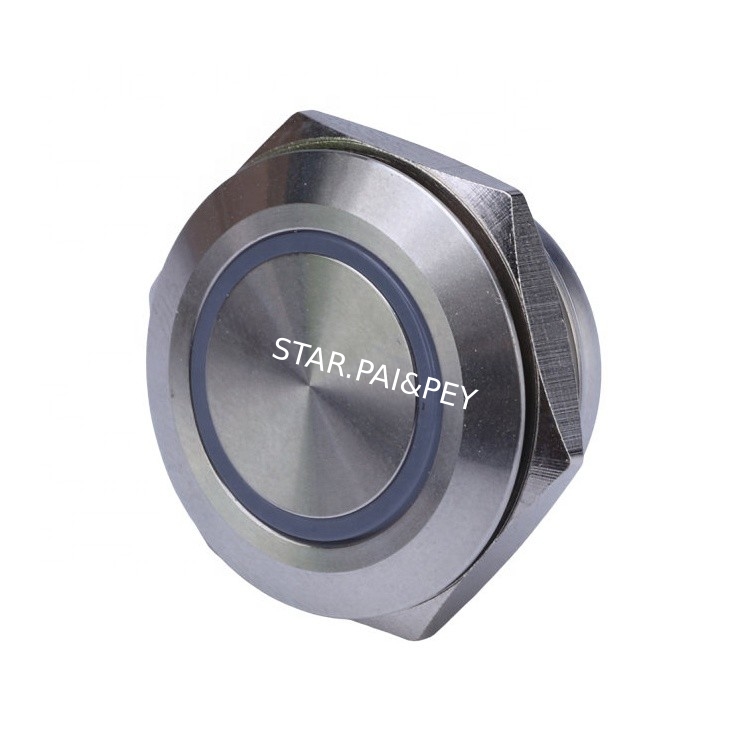

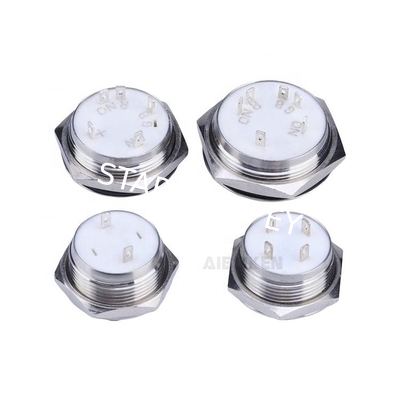

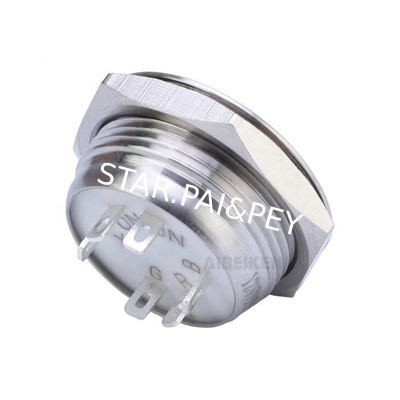

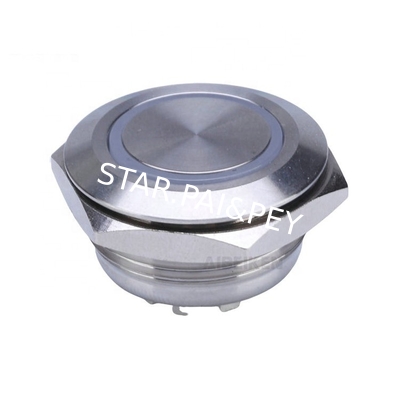

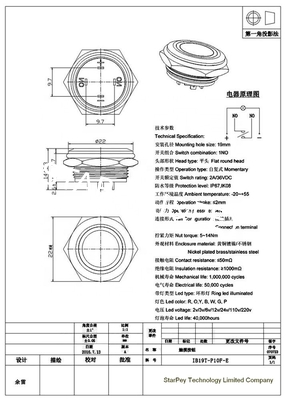

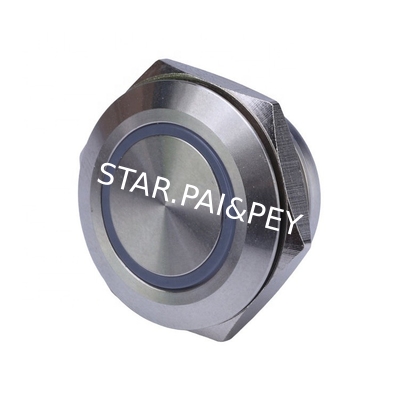

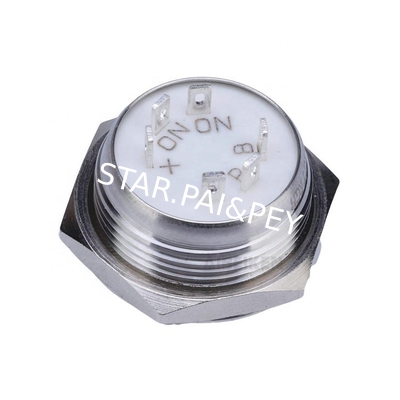

Push button switch 16mm flattest metal Momentary waterproof 12V 0
Push button switch 16mm flattest metal Momentary waterproof 12V 1
Push button switch 16mm flattest metal Momentary waterproof 12V 2
Push button switch 16mm flattest metal Momentary waterproof 12V 3
Push button switch 16mm flattest metal Momentary waterproof 12V 4
Push button switch 16mm flattest metal Momentary waterproof 12V 4
Push button switch 16mm flattest metal Momentary waterproof 12V 6
Push button switch 16mm flattest metal Momentary waterproof 12V 7
Push button switch 16mm flattest metal Momentary waterproof 12V 8



Packaging & Delivery

12mm 16mm 19mm 22mm flattest metal Momentary waterproof 12V led Illuminated RGB push button switch
1: Neutral packing : plastic bag for goods+ inner box bubble+ inner box +carton
2: Upon customers' request, but the price is different with neutral packing
3: Carton size: 30*25*30
4: 50 pcs/box,10boxes/carton

--------------------------------------------------------------------

Notice:


Please Contact our directly: sales@starpey.com
( Our company cannot directly receive your demand information from the online promotion platform. Please consult our company via email.)
