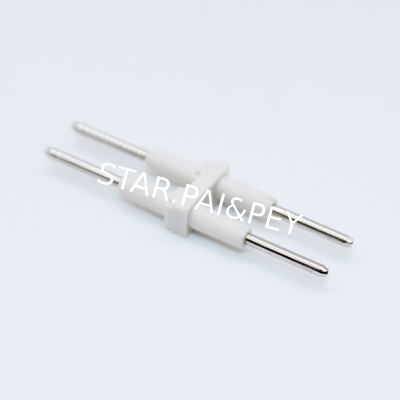

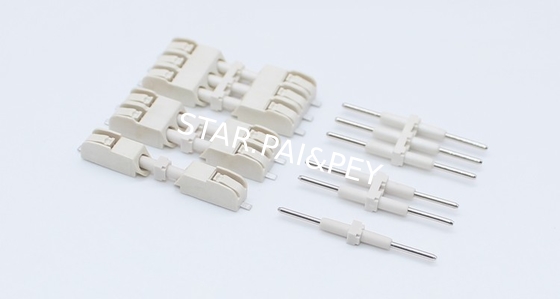

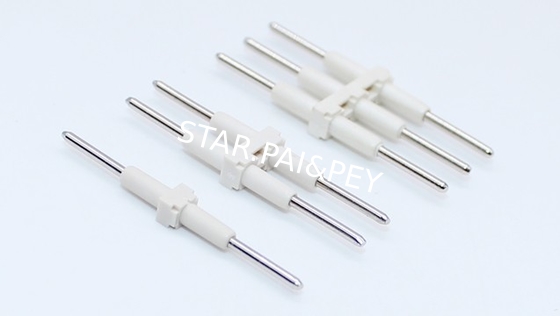

LED SMD jumper speedy and safety terminal function 2 pin pitch:4.0mm/0.157in

LED SMD jumper speedy and safety terminal function 2 pin pitch:4.0mm/0.157in

LED SMD jumper speedy and safety terminal function 2 pin  pitch:4.0mm/0.157in
LED SMD jumper speedy and safety terminal function 2 pin  pitch:4.0mm/0.157in LED SMD jumper speedy and safety terminal function 2 pin  pitch:4.0mm/0.157in LED SMD jumper speedy and safety terminal function 2 pin  pitch:4.0mm/0.157in LED SMD jumper speedy and safety terminal function 2 pin  pitch:4.0mm/0.157in

Large Image :  LED SMD jumper speedy and safety terminal function 2 pin pitch:4.0mm/0.157in Get Best Price

Product Details:
Place of Origin: Shenzhen
Brand Name: starpai
Certification: UL,Rohs
Model Number: 151-00-01P/02P/03P
Payment & Shipping Terms:
Minimum Order Quantity: 3000 pcs
Price: US0.01
Packaging Details: reel or bulk
Delivery Time: 15-25 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500000 pcs per month
Detailed Product Description
Material: PA UL94-V0 Pitch: 4mm
Poles: 1,2,3 Poles Rated Voltage: 300V
Rated Current: 6A Package: Roll

LED SMD jumper speedy and safety terminal function 2 pin  pitch:4.0mm/0.157in 0

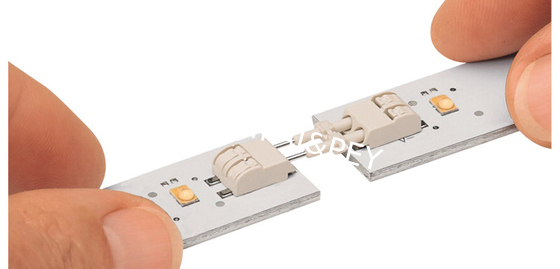

SMD PCB jumper from starpai for pushbutton and push-in CAGE CLAMP® connection, supplied in tape-and-reel packaging for automated assembly or bulk for need.

  • Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature
  • Colour: white
  • Pin spacing: 4mm
  • Tin-plated copper alloy contacts
  • 1-way terminal block
  • For Push-buttons connector easy connection and removal of all types of conductors
  • Group arrangement is possible without losing any poles

........................................................................................
