microswitch 121212 mm 4 pin tactile switches with momentary reset unlocking button device 1

Name: microswitch 12*12*12 mm 4 pin tactile switches with momentary reset unlocking button device 1
Brand: StarPey
SKU: SW12
Price: 0.5 USD
Availability: InStock
Rating: 4.6 (162 reviews)

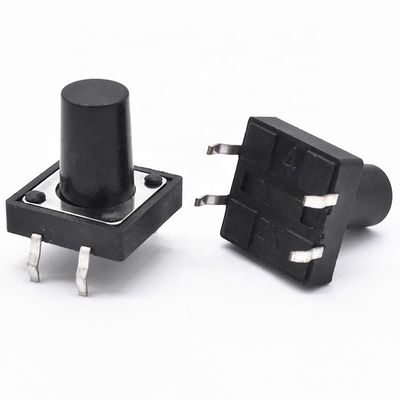

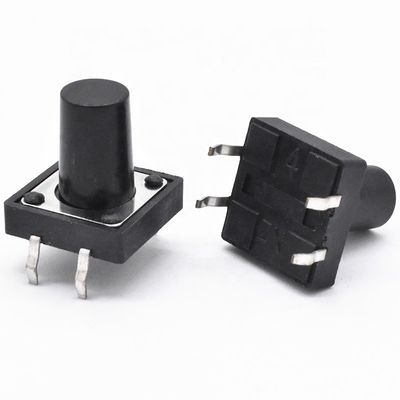

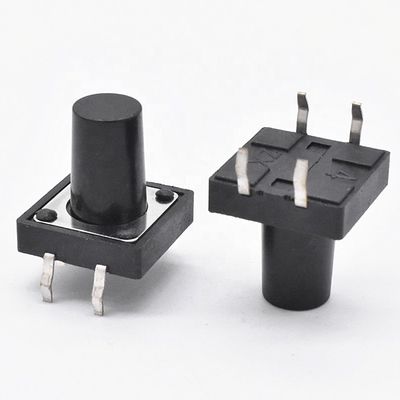

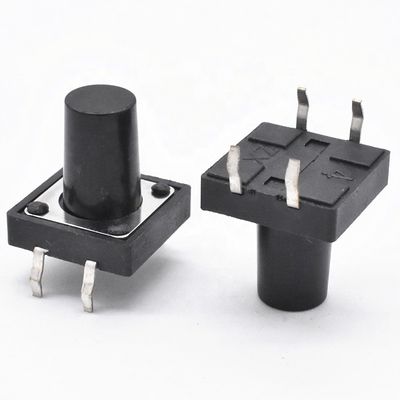

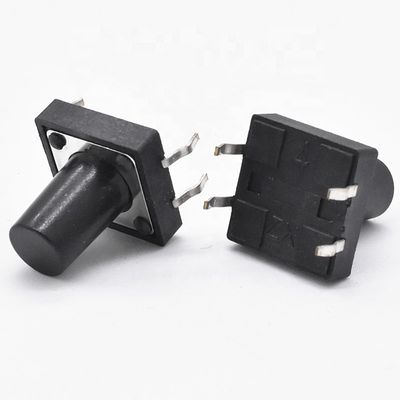

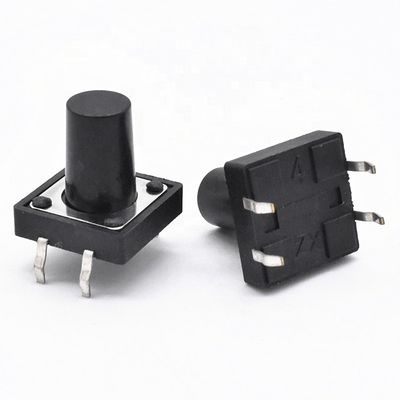

Large Image : microswitch 12*12*12 mm 4 pin tactile switches with momentary reset unlocking button device 1 Get Best Price

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	StarPey
Certification:	Rohs,UL
Model Number:	SW12

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.5
Packaging Details:	Tube
Delivery Time:	15-25 work days
Payment Terms:	Western Union, MoneyGram, L/C
Supply Ability:	1200000 pcs per moth

Contact Now

Detailed Product Description

Material:	PBT	Switch Voltage:	12V
Switch Currtenly:	0.05A	OEM/ODM:	YES

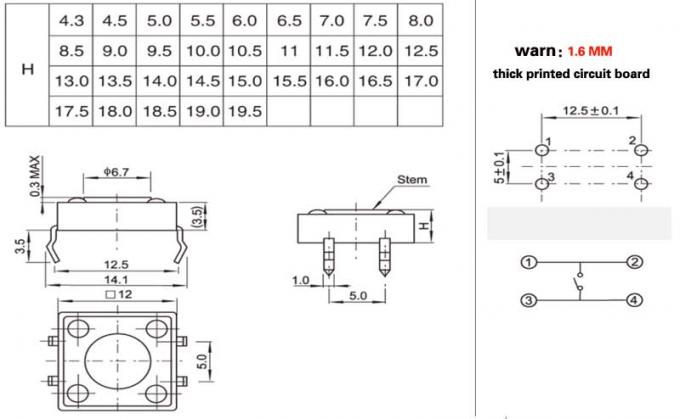

Specification:
Action force	160gf/250gf
Mobility	0.25mm
maximum rating	50mA 12V DC
Operating life	Based on customer needs
contact resistance	100MΩ max.
Operating temperature range	-30°c to + 85℃
