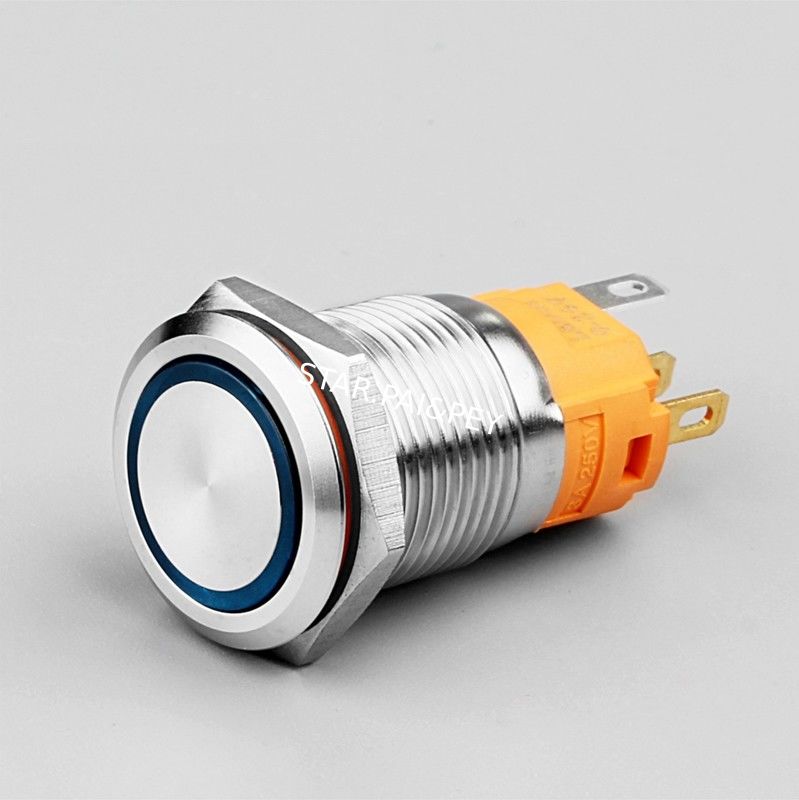

16MM DPST ON OFF momentary stainless steel push button with IP67 IK10

16MM DPST ON OFF momentary stainless steel push button with IP67 IK10

16MM DPST ON OFF momentary stainless steel push button with IP67 IK10
16MM DPST ON OFF momentary stainless steel push button with IP67 IK10 16MM DPST ON OFF momentary stainless steel push button with IP67 IK10 16MM DPST ON OFF momentary stainless steel push button with IP67 IK10 16MM DPST ON OFF momentary stainless steel push button with IP67 IK10 16MM DPST ON OFF momentary stainless steel push button with IP67 IK10 16MM DPST ON OFF momentary stainless steel push button with IP67 IK10 16MM DPST ON OFF momentary stainless steel push button with IP67 IK10

Large Image :  16MM DPST ON OFF momentary stainless steel push button with IP67 IK10 Get Best Price

Product Details:
Place of Origin: Guangdong,China
Brand Name: StarPey
Certification: Rohs
Model Number: LOB-16A
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 1
Packaging Details: Tube
Delivery Time: 15-25 work days
Payment Terms: Western Union, MoneyGram, L/C
Supply Ability: 1250000 pcs per moth
Detailed Product Description
Material: PBT Switch Voltage: 250V
Switch Currtenly: 5A OEM/ODM: YES

16MM DPST ON OFF IP67 IK10 momentary stainless steel push button
Product Description
1.3A metal push button switch

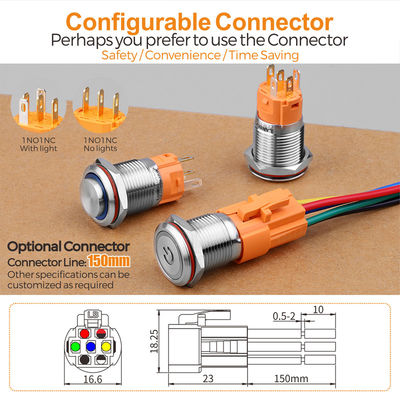

2.Optional connector,To ensure contact performance,reduce waste of labor;

3.With concave design,operation is more convenient;

4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;

5.Waterproof and dustproof grade up to IP67;

6.Mechanical life: up to 600,000times,it can work at -30℃~80℃;

7.1NO1NC function

8.It has applied of many patents ,CCC,CE approved;

9.16MM DPST ON OFF IP67 IK10 momentary stainless steel push button



Model Description
Model NO. LOB-16A metal push button switch

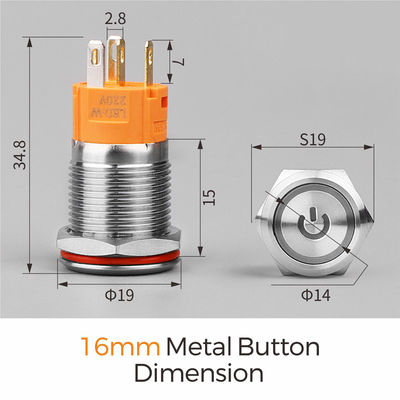

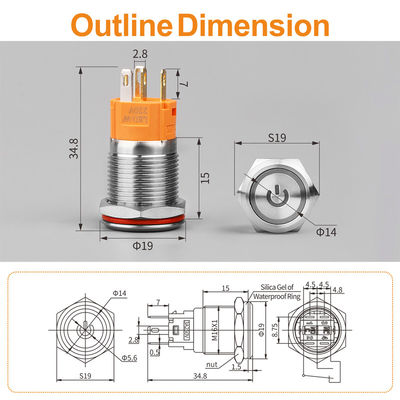

Mounting diameter 16MM
Head shape Plat Head

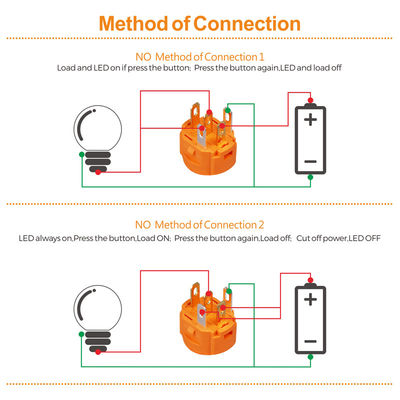

Switch Combination 1NO1NC
Operation type Momentary/Latch

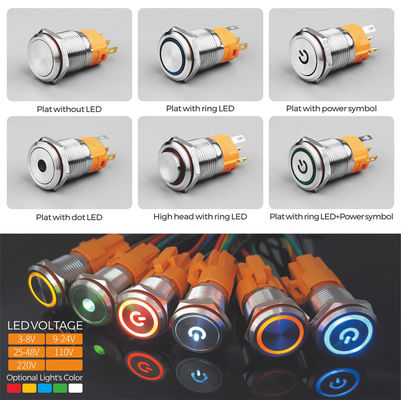

Illuminating type Annular,power symbol,dot
Illuminating color red,green,blue,yellow,orange,white,purple,pink
Lamp voltage 2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell material Stainless steel,aluminum oxide,copper plating



The Others Parameters
Project Parameter Project Parameter
Contact type Slow moving single contact Operation Schedule Connected:1.8mm,Total:3.1mm
Contact Resistance ≤50mΩ Actuating Force about 4N
Insulation Resistance ≥1000mΩ Mounting panel thickness ≤11mm. customised the others
Dielectric Strength 1000VAC min Nut torque 5~14N.m
Ambient Temperature -30℃~+80℃

Outshell/Press Key







Stainless Steel/aluminum oxide/copper plate







Protection Levels IK10 Diffuser PC
Electrical Life

Rated:2A250VAC- 100,000 times

Rated:5A250VAC-50,000 times

Rated:8A250VAC-20,000 times

Reated:10A250VAC- 20,000 times

Nut



Base Seat/

Bottom Seat

Nickel brass





PA66

Mechanical Life

Maintained-200,000 times

Self-locking-800,000 times



Pins Contact

PA66

H65 Silver Plated

Waterproof IP65/67 Spring Improved steel wire
Switch Rated Load
Project Parameter
Reated Insulation Voltage AC250V
Fusing Current 5A
Rated Voltage DC12V DC24V AC110V AC250V
Rated Current Nonreactive Load 3 2 2 3
Inductive Load 1 0.5 0.5 0.5



Led Lamp Parameters
Project Parameter
Led type High Brightness LED lamp,cool
Luminous color Red,Green,Blue,Yellow,Orange,White,Purple,Pink
Rated Voltage AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
Rated Current ≤20mA
Reference Life 40,000hours





16MM DPST ON OFF momentary stainless steel push button with IP67 IK10
