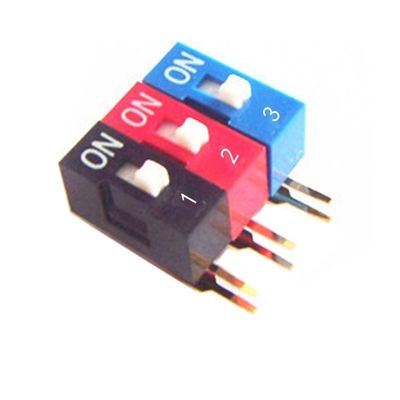

SPST Standard Slide Type Smd Rotary Dip Switch

Name: SPST Standard Slide Type Smd Rotary Dip Switch
Brand: StarPey
SKU: DIPS10-DS-06
Price: 1 USD
Availability: InStock
Rating: 5 (144 reviews)

Large Image : SPST Standard Slide Type Smd Rotary Dip Switch Get Best Price

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	StarPey
Certification:	Rohs,UL
Model Number:	DIPS10-DS-06

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	1
Packaging Details:	Tube
Delivery Time:	15-25 work days
Payment Terms:	Western Union, MoneyGram, L/C
Supply Ability:	1250000 pcs per moth

Contact Now

Detailed Product Description

Material:	PBT	Switch Voltage:	50V
Switch Currtenly:	0.3A	OEM/ODM:	YES

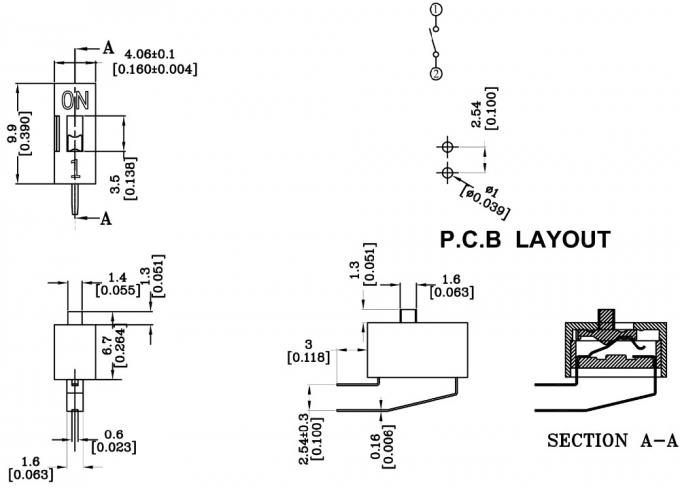

Specification & Drawing
Name	Cabriole leg Switch DIP Switch Piano Push Switch
Model	DIPS10-DS-06
Rating	DC 50V 0.3A
Contact resistance	50mΩ MAX
Insulation resistance	100MΩ MIN
peration force	200gf MAX
Total travel	0.25±0.10mm
Operation life	10,000 cycles
Function	momentary
Terminal form	SMT
Solder ability	245±5℃for2±0.5s
Operation temperature	-20℃ + 70℃
Storage temperature	-30℃ + 80℃
