Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Stainless Steel | Waterproof: | IP65 |
|---|---|---|---|
| Application: | Force Sensor | Zero Output: | ± 0.2 MV / V |
| Capacity: | 5N 10N 20N 50N 100N 200N 300N 500N 1000N 2000N |
Features & Applications:
Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel
Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
Capacity : 5N, 10N, 20N, 50N, 100N, 200N, 300N,500N, 1000N, 2000N
Parameters:
| Capacity | 0-5N~2000N | Material | Stainless Steel |
| Rated output | 1.5 ±10% mV/V | Output Impedance | 350±3Ω |
| Non-linearity | 0.05 % F.S. | Insulation | >5000MΩ/10VDC |
| Hysteresis | 0.05 % F.S. | Recommended Excitation | 2.5-5V |
| Repeatability | 0.05 % F.S. | Excitation max | 10V |
| Creep(30min) | 0.05 % F.S. | Compensated Temp Range | -10~60℃ |
| Temp Effect On Output | 0.1 % F.S./ 10℃ | Operating Temp Range | -20~80℃ |
| Temp Effect On Zero | 0.1 % F.S./ 10℃ | Safe Load | 1.2 |
| Protection Class | IP 65 | Ultimate Load Limit | 1.5 |
| Input Impedance | 350±15Ω | Cable Length | ∅2-3 x 3m |
| Wire Connection |
Ex +: Red; Ex -Black; Sig +: Green; Sig -: White (Pressure is positive, pulling is negative); |
||

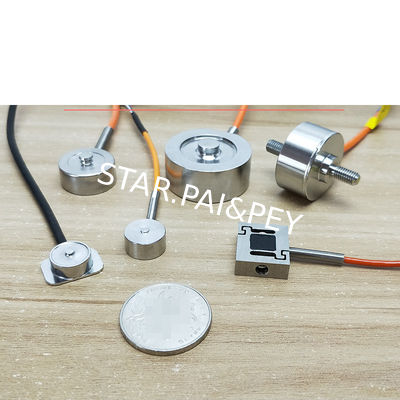

Photos:
