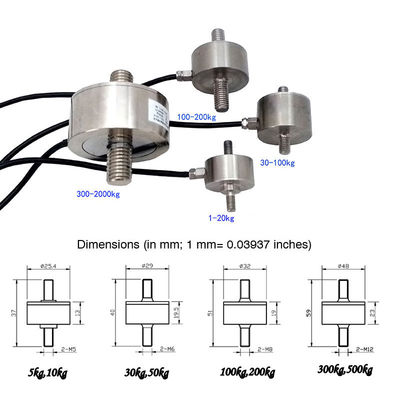

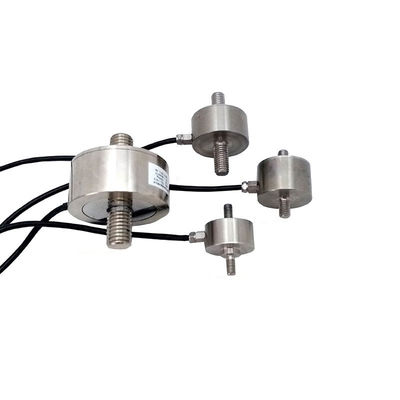

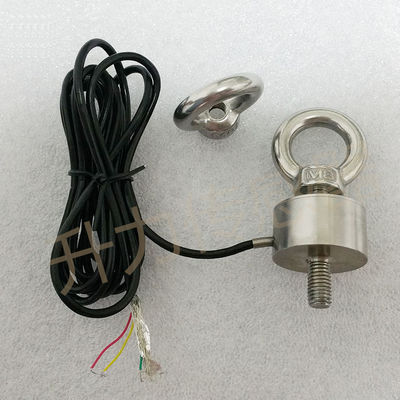

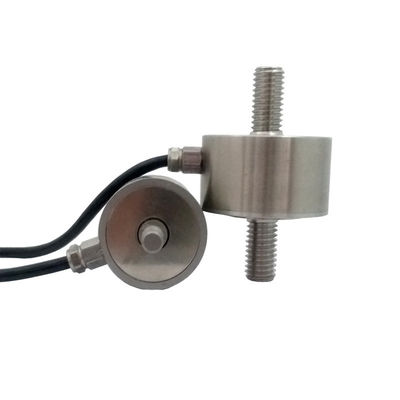

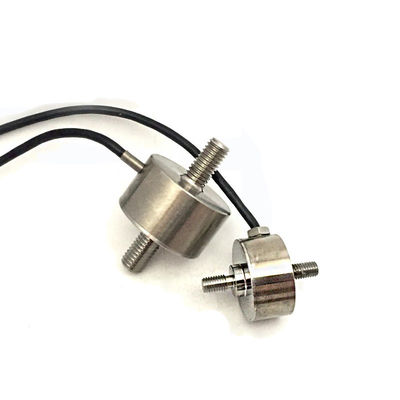

Small Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducers 3kg 5kg 100kg 2000kg

Name: Small Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducers 3kg 5kg 100kg 2000kg
Brand: StarPey
SKU: Mini-Load Cell
Price: 99.99 USD
Availability: InStock
Rating: 4.5 (133 reviews)

Large Image : Small Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducers 3kg 5kg 100kg 2000kg Get Best Price

Product Details:

Place of Origin:	China Mainland
Brand Name:	StarPey
Certification:	CE
Model Number:	Mini-Load Cell

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pieces
Price:	US $99.99
Packaging Details:	Standard Export Carton
Delivery Time:	7-15 days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	100 /Pieces per Day

Contact Now

Detailed Product Description

Material:	Stainless Steel	Waterproof:	IP65
Application:	Force Sensor	Zero Output:	± 0.2 MV / V
Capacity:	3kg 10kg 20kg 50kg 100kg 200kg 300kg 500kg 1000kg 2000kg

Features & Applications:

Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel

Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
Capacity : 3kg 5kg, 10kg, 20kg, 50kg, 100kg, 200kg, 300kg,500kg, 1000kg, 2000kg

Cable Length: 3 meters long typically

Parameters:

Capacity	0 - 3kg ~ 2000kg	Material	Stainless Steel
Rated output	1.5 ±10% mV/V	Output Impedance	350±3Ω
Non-linearity	0.05 % F.S.	Insulation	>5000MΩ/10VDC
Hysteresis	0.05 % F.S.	Recommended Excitation	2.5-5V
Repeatability	0.05 % F.S.	Excitation max	10V
Creep(30min)	0.05 % F.S.	Compensated Temp Range	-10~60℃
Temp Effect On Output	0.1 % F.S./ 10℃	Operating Temp Range	-20~80℃
Temp Effect On Zero	0.1 % F.S./ 10℃	Safe Load	1.2
Protection Class	IP 65	Ultimate Load Limit	1.5
Input Impedance	350±15Ω	Cable Length	∅2-3 x 3m
Wire Connection	Ex +: Red; Ex -Black; Sig +: Green; Sig -: White (Pressure is positive, pulling is negative);
