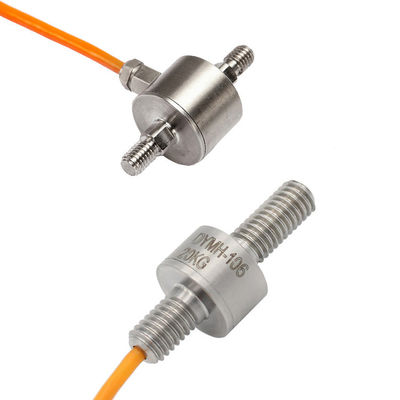

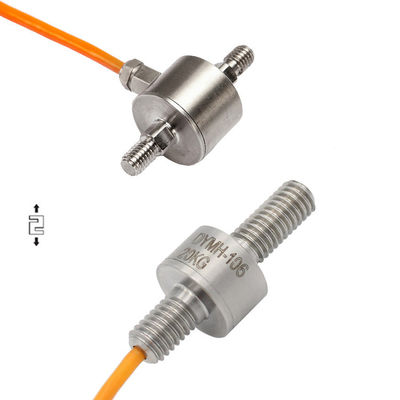

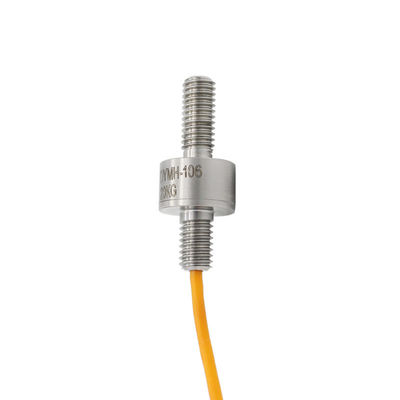

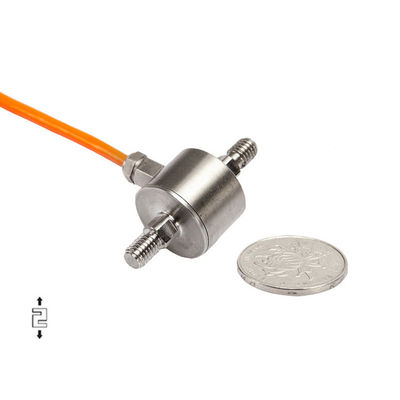

Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter

Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter

Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter
Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter

Large Image :  Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter Get Best Price

Product Details:
Place of Origin: China Mainland
Brand Name: StarPey
Certification: CE
Model Number: Mini-Load Cell
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: US $199.99
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 100 /Pieces per Day
Detailed Product Description
Material: Stainless Steel Waterproof: IP65
Application: Force Sensor Zero Output: ± 0.2 MV / V
Capacity: 3kg 10kg 20kg 50kg 100kg Diameter: 13mm

Features & Applications:

Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel

Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
Capacity : 3kg 5kg, 10kg, 20kg, 50kg, 100kg, 200kg

Cable Length: 3 meters long typically

Parameters:

Capacity 0 - 3kg ~ 2000kg Material Stainless Steel
Rated output 1.5 ±10% mV/V Output Impedance 350±3Ω
Non-linearity 0.05 % F.S. Insulation >5000MΩ/10VDC
Hysteresis 0.05 % F.S. Recommended Excitation 2.5-5V
Repeatability 0.05 % F.S. Excitation max 10V
Creep(30min) 0.05 % F.S. Compensated Temp Range -10~60
Temp Effect On Output 0.1 % F.S./ 10 Operating Temp Range -20~80
Temp Effect On Zero 0.1 % F.S./ 10 Safe Load 1.2
Protection Class IP 65 Ultimate Load Limit 1.5
Input Impedance 350±15Ω Cable Length 2-3 x 3m
Wire Connection

Ex +: Red; Ex -Black; Sig +: Green; Sig -: White

(Pressure is positive, pulling is negative);





Photos:

Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter 0
