500kg 0.5T 1.0T 2T 3T 5T 5000kg Floor Platform Balance Scale Load Cells Shear Beam

500kg 0.5T 1.0T 2T 3T 5T 5000kg Floor Platform Balance Scale Load Cells Shear Beam

500kg 0.5T 1.0T 2T 3T 5T 5000kg Floor Platform Balance Scale Load Cells Shear Beam
500kg 0.5T 1.0T 2T 3T 5T 5000kg Floor Platform Balance Scale Load Cells Shear Beam 500kg 0.5T 1.0T 2T 3T 5T 5000kg Floor Platform Balance Scale Load Cells Shear Beam 500kg 0.5T 1.0T 2T 3T 5T 5000kg Floor Platform Balance Scale Load Cells Shear Beam 500kg 0.5T 1.0T 2T 3T 5T 5000kg Floor Platform Balance Scale Load Cells Shear Beam

Large Image :  500kg 0.5T 1.0T 2T 3T 5T 5000kg Floor Platform Balance Scale Load Cells Shear Beam Get Best Price

Product Details:
Place of Origin: China Mainland
Brand Name: StarPey
Certification: CE
Model Number: YZC-320C
Payment & Shipping Terms:
Minimum Order Quantity: 4 Pieces
Price: US $49.99
Packaging Details: Standard Export Carton
Delivery Time: 5-7 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 100 /Pieces per Day
Detailed Product Description
Material: Stainless Steel Waterproof: IP67

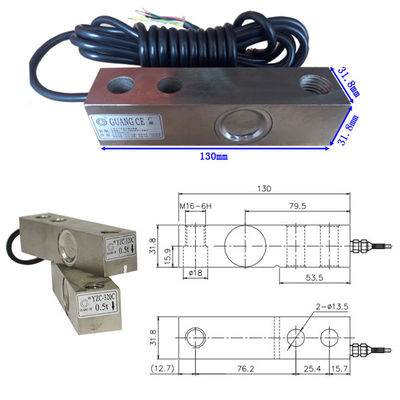

Size: 130mm X 31.8mm X 31.8mm Power Supply: 10 To 12V DC

Application Platform Scales, Floor Scales, Blending Scales
Rated Load 0.25, 0.3, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 5, 7.5, 10t
Sensitivity 3±0.003mV/V (0.5-10t ), 2.0±0.002mV/V(0.25-0.3t)
Accuracy Class C2-C5
Zero balance ±1%F.S ±0.02%F.S/10C
TCO ±0.02%F.S/10C
TC SPAN ±0.02%F.S/10C
Input resistance 400±10OHM
Output resistance 352±3OHM

Insulation resistance ≥5000MOHM
Temperature Range. Compensated -10 to +40C
Operating Temp Range -30 to +70C

Safe load limit 120%F.S
Over load limit 180%F.S

Recommend excitation 10 to 12V DC
Maximum excitation 15V DC
Protection Class IP67(0.25-0.75t) IP68 (1-10t)
Construction Alloy Steel/Stainless Steel

Cable: Length; 3m(0.25-2.5t),4.2m (3-5t), 5m(7.5-10t)

500kg 0.5T 1.0T 2T 3T 5T 5000kg Floor Platform Balance Scale Load Cells Shear Beam 0

500kg 0.5T 1.0T 2T 3T 5T 5000kg Floor Platform Balance Scale Load Cells Shear Beam 1
