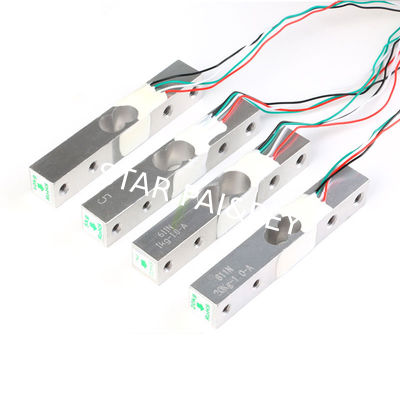

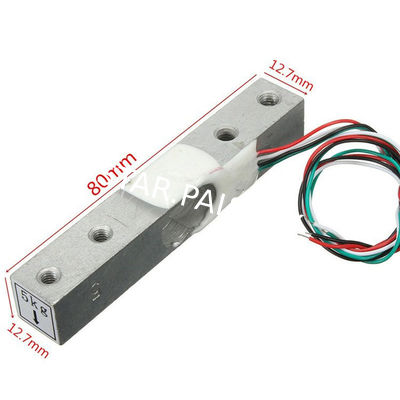

Aluminum Miniature Force Weighing Sensor Micro Load Cells 1kg 2kg 3kg 5kg 10kg 20kg

Aluminum Miniature Force Weighing Sensor Micro Load Cells 1kg 2kg 3kg 5kg 10kg 20kg

Aluminum Miniature Force Weighing Sensor Micro Load Cells 1kg 2kg 3kg 5kg 10kg 20kg
Aluminum Miniature Force Weighing Sensor Micro Load Cells 1kg 2kg 3kg 5kg 10kg 20kg Aluminum Miniature Force Weighing Sensor Micro Load Cells 1kg 2kg 3kg 5kg 10kg 20kg Aluminum Miniature Force Weighing Sensor Micro Load Cells 1kg 2kg 3kg 5kg 10kg 20kg Aluminum Miniature Force Weighing Sensor Micro Load Cells 1kg 2kg 3kg 5kg 10kg 20kg Aluminum Miniature Force Weighing Sensor Micro Load Cells 1kg 2kg 3kg 5kg 10kg 20kg

Large Image :  Aluminum Miniature Force Weighing Sensor Micro Load Cells 1kg 2kg 3kg 5kg 10kg 20kg Get Best Price

Product Details:
Place of Origin: China Mainland
Brand Name: StarPey
Certification: CE
Model Number: YZC-Load Cell
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: US $2.99
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 100 /Pieces per Day
Detailed Product Description
Material: Aluminum Waterproof: IP65
Application: Weighing Sensor Zero Output: ± 0.2 MV / V

LOAD CELLS 1kg 2kg 3kg 5kg 10kg 20kg 30kg 40kg 50kg
Rated load (kg) : 1,2,3,5,6,10,15,20,30,40,50,60,100,120
Main features : The product is made of alloy aluminum.

It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation.

The product is suit for electronic top scale, floor scale and other weighing equipment.



Parameters :
Precision : C2 / C3
Temp. effect on span(%F.S/10℃) : ±0.02/±0.014
Comprehensive error(%F.S) : ±0.02/±0.017
Temp. effect on zero(%F.S/10℃) : ±0.03/±0.017
Rated output(mv/v) : 2.0±0.2
Compensated temp. range(℃ ) : -10~+40
Creep(%F.S/30min) : ±0.02/±0.017
Use temp. range(℃ ) : -20~+60
Zero balance(%F.S) : ±1.0
Excitation voltage(V) : 9~12(DC)
Input resistance(Ω) : 405±10
Safe overload (%F.S) : 120
Output resistance(Ω) : 350±3
Ultimate overload (%F.S) : 150
Insulation resistance(MΩ) : ≥5000(100VDC)
Defend grade : IP65

Wiring schematic diagram:
Red: Input ( + ) 111 White: Output ( - )
Black: Input ( - ) 111 Green: Output ( + )

load cell connecting to an Arduino with a HX711 amplifier / 24 bit ADC

Aluminum Miniature Force Weighing Sensor Micro Load Cells 1kg 2kg 3kg 5kg 10kg 20kg 0
