Home Products-Spring-cage Clamp Terminal Block

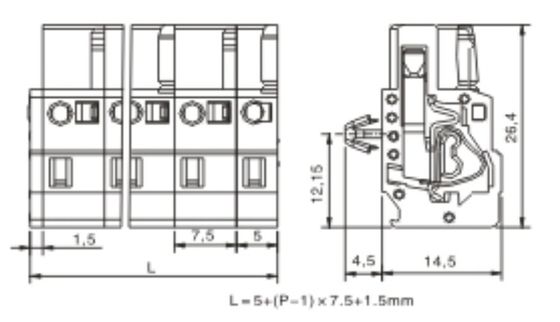

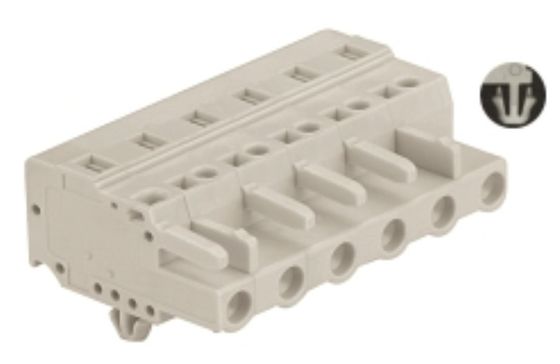

Spring-cage Clamp Terminal Female snap-in syle Pitch: 7.50mm /0.295 in

Spring-cage Clamp Terminal Female snap-in syle Pitch: 7.50mm /0.295 in

Spring-cage Clamp Terminal Female snap-in syle Pitch: 7.50mm /0.295 in
Spring-cage Clamp Terminal Female snap-in syle Pitch: 7.50mm /0.295 in Spring-cage Clamp Terminal Female snap-in syle Pitch: 7.50mm /0.295 in

Large Image :  Spring-cage Clamp Terminal Female snap-in syle Pitch: 7.50mm /0.295 in Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: STARPAI
Certification: EC,UL,Rohs
Model Number: 450-7.5-1/1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 2 USD
Packaging Details: Packing
Delivery Time: 25 days after 100% T/T payment
Payment Terms: T/T
Supply Ability: 100000K/pcs
Detailed Product Description



Specifications
Pitch 7.50mm /0.295 in
Poles 2-12 Pin
Wire Entrance Parallel
Material
Plastic(Grey) PA66,UL94V-0
Case Crimp Steel
Terminal Brass alloy
Electrical
Voltage 300 V
Current rating 15A
Electrical Withstanding AC4000V,1minute
Wire range 16-24 AWG
Mechanical
Operation temperature - 33℃~+105℃
Strip length 8-9mm
