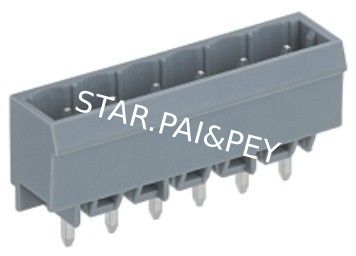

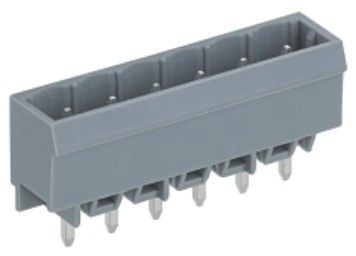

Male connectors with solder pins Pitch: 5.0mm/0. 197 in

Name: Male connectors with solder pins Pitch: 5.0mm/0. 197 in
Brand: STARPAI
SKU: 450-5.0-1
Price: 2 USD
Availability: InStock
Rating: 4.8 (107 reviews)

Large Image : Male connectors with solder pins Pitch: 5.0mm/0. 197 in Get Best Price

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	STARPAI
Certification:	EC,UL,Rohs
Model Number:	450-5.0-1

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	2 USD
Packaging Details:	Packing
Delivery Time:	25 days after 100% T/T payment
Payment Terms:	T/T
Supply Ability:	100000K/pcs

Contact Now

Detailed Product Description

Number Of Contacts:	1 - 10	Conductor Size:	Socket
Type:	Plug-in

Specifications

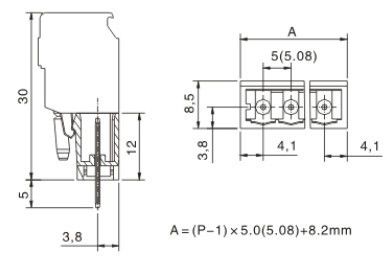

Pitch	5.0mm/0. 197 in
Poles	2-24 Pin
Wire Entrance	Parallel
Material
Plastic(Grey)	PA66,UL94V-0
Case Crimp	Steel
Terminal	Brass alloy
Electrical
Voltage	300 V
Current rating	15A
Electrical Withstanding	AC4000V,1minute
Wire range	12-28 AWG
Mechanical
Operation temperature	- 33℃～+105℃
Strip length	8-9mm
