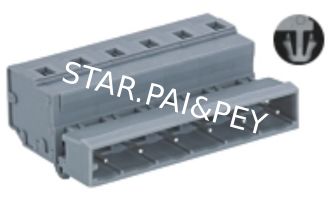

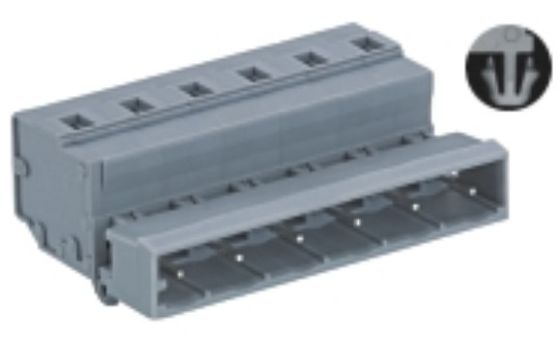

Spring-cage Clamp Terminal Male With Snap-in Syle Pitch: 7.5mm/0. 295in

Name: Spring-cage Clamp Terminal Male With Snap-in Syle Pitch: 7.5mm/0. 295in
Brand: STARPAI
SKU: 475-7.5/5.08-1/1
Price: 2 USD
Availability: InStock
Rating: 4.7 (161 reviews)

Large Image : Spring-cage Clamp Terminal Male With Snap-in Syle Pitch: 7.5mm/0. 295in Get Best Price

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	STARPAI
Certification:	EC,UL,Rohs
Model Number:	475-7.5/5.08-1/1

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	2 USD
Packaging Details:	Packing
Delivery Time:	25 days after 100% T/T payment
Payment Terms:	T/T
Supply Ability:	100000K/pcs

Contact Now

Detailed Product Description

Number Of Contacts:	1 - 10	Conductor Size:	11 - 20 AWG
Type:	Spring

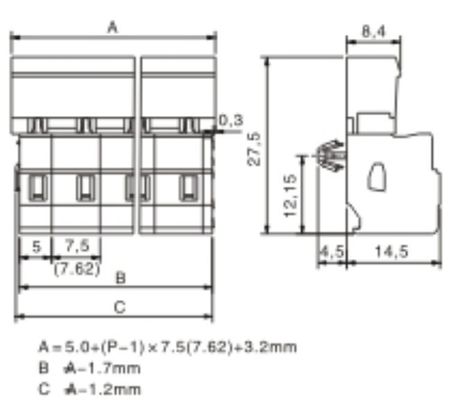

Specifications
Pitch	7.50mm/0.295 in
Poles	2-16 Pin
Wire Entrance	Parallel
Material
Plastic(Grey)	PA66,UL94V-0
Case Crimp	Steel
Terminal	Brass alloy
Electrical
Voltage	300 V
Current rating	15A
Electrical Withstanding	AC4000V,1minute
Wire range	12-28 AWG
Mechanical
Operation temperature	- 33℃～+105℃
Strip length	8-9mm
