Home Products-Lighting connector or Lighting terminal block

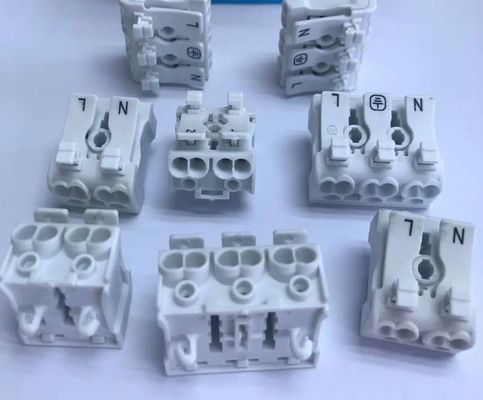

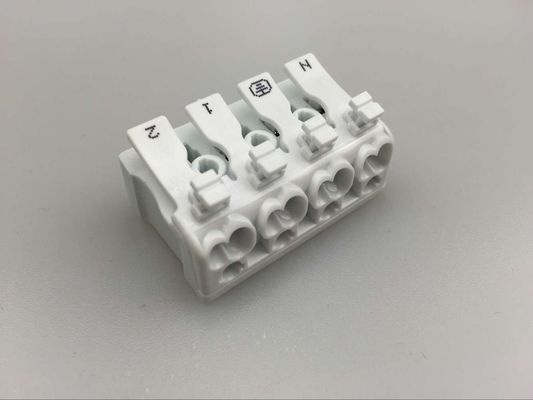

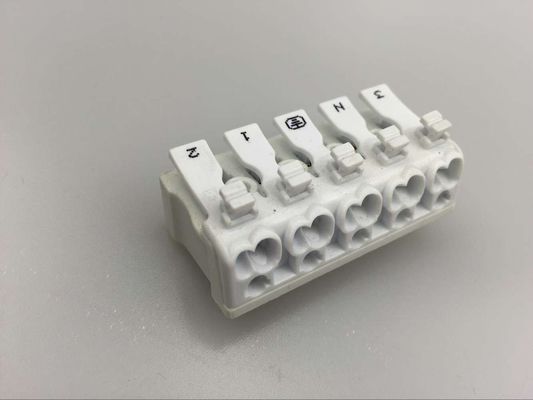

Push-on Terminal Block Spring Connector Quick Wire Connector LED Strip Lighting 1P,2P,3P,4P,5P

Push-on Terminal Block Spring Connector Quick Wire Connector LED Strip Lighting 1P,2P,3P,4P,5P

Push-on Terminal Block Spring Connector Quick Wire Connector LED Strip Lighting 1P,2P,3P,4P,5P
Push-on Terminal Block Spring Connector Quick Wire Connector LED Strip Lighting 1P,2P,3P,4P,5P Push-on Terminal Block Spring Connector Quick Wire Connector LED Strip Lighting 1P,2P,3P,4P,5P Push-on Terminal Block Spring Connector Quick Wire Connector LED Strip Lighting 1P,2P,3P,4P,5P

Large Image :  Push-on Terminal Block Spring Connector Quick Wire Connector LED Strip Lighting 1P,2P,3P,4P,5P Get Best Price

Product Details:
Place of Origin: Shenzhen
Brand Name: starpai
Certification: Rohs,UL
Model Number: 901/905
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: US0.13-US0.85/pcs
Packaging Details: bag
Delivery Time: 15-25 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 90000000 pcs per month
Detailed Product Description
Material: PA Color: White
Electricity: 300V/25A



Push-on Terminal Block Spring Connector Quick Wire Connector LED Strip Lighting 1P,2P,3P,4P,5P 0   Push-on Terminal Block Spring Connector Quick Wire Connector LED Strip Lighting 1P,2P,3P,4P,5P 1

Push-on type connect strip



Specification:
Brand: Starpai
Model: 901/902/903/904/905
Voltage: 300V
Electricity:25A
Size: 21.2*24.5*(N*10+1)mm (T*W*L)
Insulation material: PA (fire-retardant insulation)
Wire range: 0.5 ~ 2.5mm2
Temperature: -40℃ ~ 150℃
Pressing frame material: Rolled steel

Apply for: motor, electrical control, power, household appliances, lighting, machinery and wire joints

Features:
1)By UL and ROHS, international authentication.
2)Pressed button material is PA, good elastic, product performance in line with UL, IEC standards
3)Wire connecting without screws, accelerate the speed of assembly, but also saves labor wages and costs

Note: please do not use to connect high-power devices, power of device does not exceed 800W.
Package:
500 / 901 Connector
