02-24 poles Screwless Terminal side push botton| Pitch: 2.54mm | Part No.601-2-2.54/5.08

02-24 poles Screwless Terminal side push botton| Pitch: 2.54mm | Part No.601-2-2.54/5.08

02-24 poles Screwless Terminal side push botton| Pitch: 2.54mm | Part No.601-2-2.54/5.08
02-24 poles Screwless Terminal side push botton| Pitch: 2.54mm | Part No.601-2-2.54/5.08

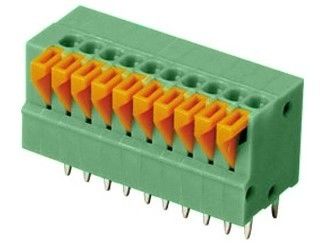

Large Image :  02-24 poles Screwless Terminal side push botton| Pitch: 2.54mm | Part No.601-2-2.54/5.08 Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: STARPAI
Certification: EC,UL,Rohs
Model Number: 601-2-2.54/5.08-05
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.65
Packaging Details: Packing
Delivery Time: 25 days after 100% T/T payment
Payment Terms: T/T
Supply Ability: 100000K/pcs
Detailed Product Description



02-24 poles Screwless Terminal side push botton| Pitch: 2.54mm | Part No.601-2-2.54/5.08 0

Pitch 2.54/5.08mm
Poles 2-24 Pin
Material
Case PA66,UL94V-0
pin Brass.Tin Plated
spring Stainless steel
Electrical
Voltage 150 V
Current rating 2A
Electrical Withstanding AC1500V,1minute
Isolation resistance DC500V 500MΩ
Wire range 26-22 AWG
Mechanical
Operation temperature - 33℃~+105℃
Strip length 7-8mm
