02-24 poles Screwless Terminal top push botton| Pitch: 2.54mm | Part No.601-1-2.54/5.08

Name: 02-24 poles Screwless Terminal top push botton| Pitch: 2.54mm | Part No.601-1-2.54/5.08
Brand: STARPAI
SKU: 601-1-2.54/5.08-05
Price: 0.65 USD
Availability: InStock
Rating: 4.9 (192 reviews)

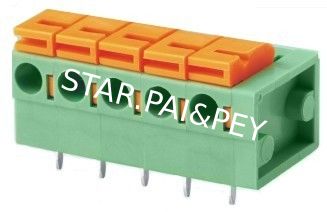

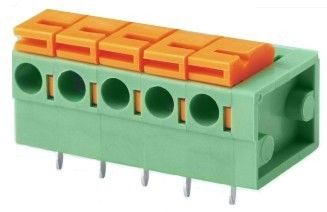

Large Image : 02-24 poles Screwless Terminal top push botton| Pitch: 2.54mm | Part No.601-1-2.54/5.08 Get Best Price

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	STARPAI
Certification:	EC,UL,Rohs
Model Number:	601-1-2.54/5.08-05

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.65
Packaging Details:	Packing
Delivery Time:	25 days after 100% T/T payment
Payment Terms:	T/T
Supply Ability:	100000K/pcs

Contact Now

Detailed Product Description

Number Of Contacts:	1 - 10

Pitch	2.54/5.08mm
Poles	2-24 Pin
Material
Case	PA66,UL94V-0
pin	Brass.Tin Plated
spring	Stainless steel
Electrical
Voltage	150 V
Current rating	2A
Electrical Withstanding	AC1500V,1minute
Isolation resistance	DC500V 500MΩ
Wire range	26-22 AWG
Mechanical
Operation temperature	- 33℃～+105℃
Strip length	7-8mm
