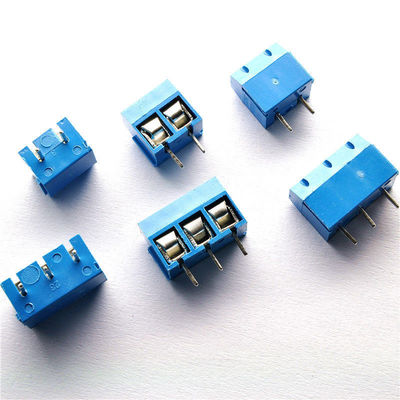

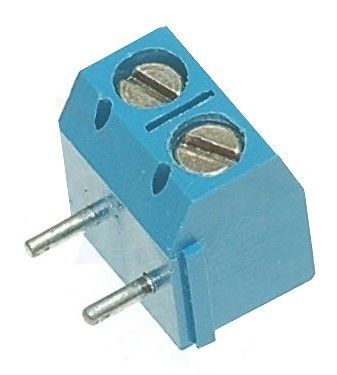

Wire Protector Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 3.50mm 2 to 24 Poles

Wire Protector Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 3.50mm 2 to 24 Poles

Wire Protector Terminal Block Type High Power Automotive Terminal Block Connector/Socket with  3.50mm  2 to 24 Poles
Wire Protector Terminal Block Type High Power Automotive Terminal Block Connector/Socket with  3.50mm  2 to 24 Poles Wire Protector Terminal Block Type High Power Automotive Terminal Block Connector/Socket with  3.50mm  2 to 24 Poles

Large Image :  Wire Protector Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 3.50mm 2 to 24 Poles Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: STARPAI
Certification: EC,UL,Rohs
Model Number: 101-2-3.5
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 1 usd
Packaging Details: Packing
Delivery Time: 25 days after 100% T/T payment
Payment Terms: T/T
Supply Ability: 100000K/pcs
Detailed Product Description
Pitch: 3.5mm Poles: 2-24pins
Current: 8A Color: Blue, Green, White
High Light:

Wire Protector Terminal Block

,

Terminal Block

,

PCB connector

Wire Protector Terminal Block Type High Power Automotive Terminal Block Connector/Socket with  3.50mm  2 to 24 Poles 0

Detailed

Pitch:3.50mm
Poles:2-24 Pin

Material
Case:PA66,UL94V-0
Brass hole:Brass,Tin plated
Protector:Stainless steel
Screw:M2,C1018 steel,Zinc plated

Electrical
Voltage:250 V
Current rating:8A
Electrical Withstanding:AC2000V,1minute
Isolation resistance:DC500V 500MΩ

Mechanical
Wire range:24 -16 AWG
Max Torque:2.5kgf.cm
Operation temperature:- 33℃~+105℃
Strip length:5-6mm
