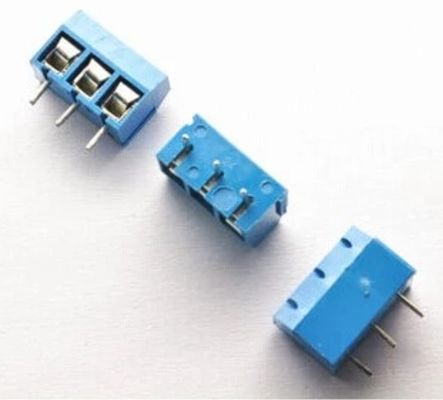

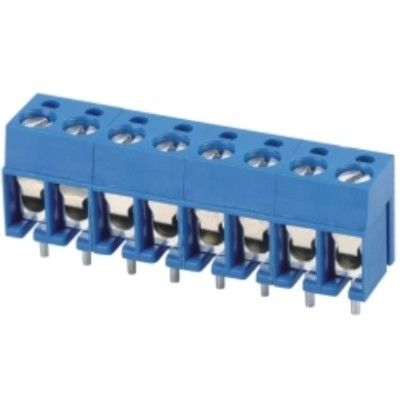

Wire Protector Terminal Block /Socket with 3.50mm 2 to 24 Poles vertical PCB board

Wire Protector Terminal Block /Socket with 3.50mm 2 to 24 Poles vertical PCB board

Wire Protector Terminal Block /Socket with  3.50mm  2 to 24 Poles vertical PCB board
Wire Protector Terminal Block /Socket with  3.50mm  2 to 24 Poles vertical PCB board Wire Protector Terminal Block /Socket with  3.50mm  2 to 24 Poles vertical PCB board Wire Protector Terminal Block /Socket with  3.50mm  2 to 24 Poles vertical PCB board

Large Image :  Wire Protector Terminal Block /Socket with 3.50mm 2 to 24 Poles vertical PCB board Get Best Price

Product Details:
Place of Origin: shenzhen
Brand Name: starpai
Certification: EC,UL,Rohs
Model Number: 101-1-3.5-2
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: 1 usd
Packaging Details: Packing
Delivery Time: 25 days after 100% T/T payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000K/pcs
Detailed Product Description
Pitch: 3.5mm Voltage: 250v
Current Rating: 10A Wire Range: 24 -16 AWG


Wire Protector Terminal Block /Socket with  3.50mm  2 to 24 Poles vertical PCB board 0

Detailed

Detailed


Pitch
3.50mm
Poles
2-24 Pin
Material
Case PA66,UL94V-0
Brass hole Brass,Tin plated
Protector Stainless steel
Screw M2,C1018 steel,Zinc plated
Electrical
Voltage 250 V
Current rating 10A
Electrical Withstanding AC2000V,1minute
Isolation resistance DC500V 500MΩ
Wire range 24 -16 AWG
Max Torque 2.5kgf.cm
Mechanical
Operation temperature - 33℃~+105℃
Strip length 5-6mm
