Wire Protector Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 3.50mm 2 to 24 Poles

All Products

-Barrier Terminal Block (14)

-Plug-in Terminal Block (22)

-Feed Through Terminal Block (12)

-Europe Terminal Block (16)

-Spring Terminal Block (11)

-DIP Switch.Tact & ZIF Socket (28)

-Screw Type Din-Rail Terminal Block (18)

-Lighting connector or Lighting terminal block (21)

-Spring-cage Clamp Terminal Block (26)

-IDC Header and IDC Socket (9)

-Terminal Blocks Breakout Board Adapter (38)

-Cable Assembling (44)

- Auto Parts & Accessories (20)

-Wiring Harness Turnkey (21)

-Closed-end Connector (29)

-Communication & Photoelectric Connector (22)

-THERAPY DEVICE (5)

- Fuse & Sensor & Accessories (28)

- Dry/Oil/Box-Transformer (0)

I'm Online Chat Now

Certification

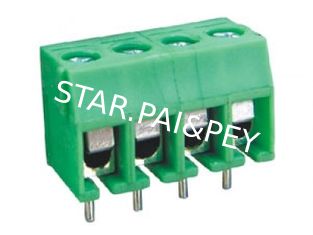

Wire Protector Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 3.50mm 2 to 24 Poles

Name: Wire Protector Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 3.50mm 2 to 24 Poles
Brand: STARPAI
SKU: 101-1-3.5
Price: 1 USD
Availability: InStock
Rating: 4.6 (144 reviews)

Large Image : Wire Protector Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 3.50mm 2 to 24 Poles Get Best Price

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	STARPAI
Certification:	EC,UL,Rohs
Model Number:	101-1-3.5

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	1 usd
Packaging Details:	Packing
Delivery Time:	25 days after 100% T/T payment
Payment Terms:	T/T
Supply Ability:	100000K/pcs

Contact Now

Detailed Product Description

High Light:

Wire Protector Terminal Block

Terminal Block

PCB connector

Wire Protector Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 3.50mm 2 to 24 Poles 0

Detailed

Material
Pitch	3.50mm
Poles	2-24 Pin
Case	PA66,UL94V-0
Brass hole	Brass,Tin plated
Protector	Stainless steel
Screw	M2,C1018 steel,Zinc plated
Electrical
Voltage	250 V
Current rating	10A
Electrical Withstanding	AC2000V,1minute
Isolation resistance	DC500V 500MΩ
Wire range	24 -16 AWG
Max Torque	2.5kgf.cm
Mechanical
Operation temperature	- 33℃～+105℃
Strip length	5-6mm
