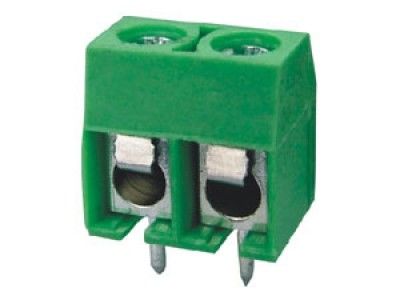

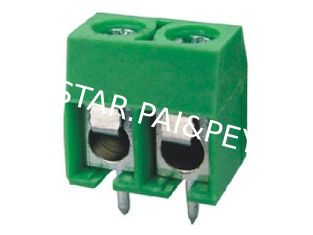

Wire protector terminal | Pitch: 5.00mm,5.08mm | Part No.103-1-5.00 / 5.08

Name: Wire protector terminal | Pitch: 5.00mm,5.08mm | Part No.103-1-5.00 / 5.08
Brand: STARPAI
SKU: 103-1-5.00/5.08
Price: 1 USD
Availability: InStock
Rating: 4.6 (170 reviews)

Large Image : Wire protector terminal | Pitch: 5.00mm,5.08mm | Part No.103-1-5.00 / 5.08 Get Best Price

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	STARPAI
Certification:	EC,UL,Rohs
Model Number:	103-1-5.00/5.08

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	1usd
Packaging Details:	Packing
Delivery Time:	25 days after 100% T/T payment
Payment Terms:	T/T
Supply Ability:	100000K/pcs

Contact Now

Detailed Product Description

High Light:

Terminal Block

Euro Terminal

PCB connetor

Material

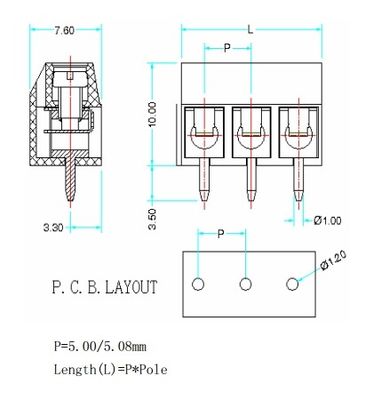

Pitch	5.00/5.08mm
Poles	2-24 Pin
Case	PA66,UL94V-0
Brass hole	Brass,Tin plated
Protector	Stainless steel
Screw	M2.5,C1018 steel,Zinc plated
Electrical
Voltage	250 V
Current rating	15A
Electrical Withstanding	AC2500V,1 min
Isolation resistance	DC500V 500MΩ
Wire range	22 -14 AWG
Max Torque	3.5kgf.cm
Mechanical
Operation temperature	- 33℃～+105℃
Strip length	5-6mm
