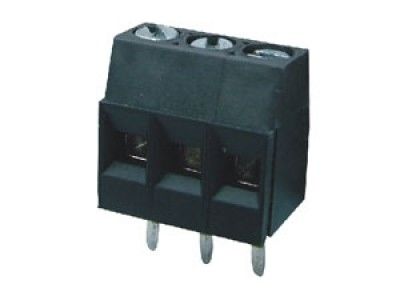

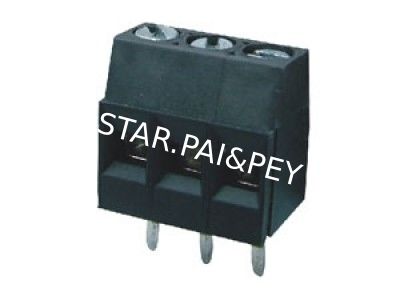

Euro Terminal | Pitch: 3.50mm | Part No.502-1-3.50

Name: Euro Terminal | Pitch: 3.50mm | Part No.502-1-3.50
Brand: STARPAI
SKU: 502-1-3.50
Price: 1 USD
Availability: InStock
Rating: 4.7 (187 reviews)

Large Image : Euro Terminal | Pitch: 3.50mm | Part No.502-1-3.50 Get Best Price

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	STARPAI
Certification:	EC,UL,Rohs
Model Number:	502-1-3.50

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	1usd
Packaging Details:	Packing
Delivery Time:	25 days after 100% T/T payment
Payment Terms:	T/T
Supply Ability:	100000K/pcs

Contact Now

Detailed Product Description

High Light:

Terminal Block

Euro Terminal

PCB connetor

Material
Pitch	3.50mm
Poles	2-24 Pin
Case	PA66,UL-94 V-0
Contact	Brass,Ni plated
Pin header	Brass,Tin plated
Screw	M2,C1018 steel,Zinc plated
Electrical
Voltage	250V
Current rating	8A
Electrical Withstanding	AC1500V,1minute
Isolation resistance	DC500V 500MΩ
Wire range	26-20 AWG
Max Torque	2.5kgf.cm
Mechanical
Operation temperature	- 33℃～+105℃
Strip length	4-5mm
