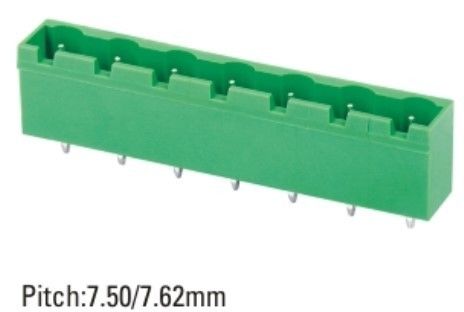

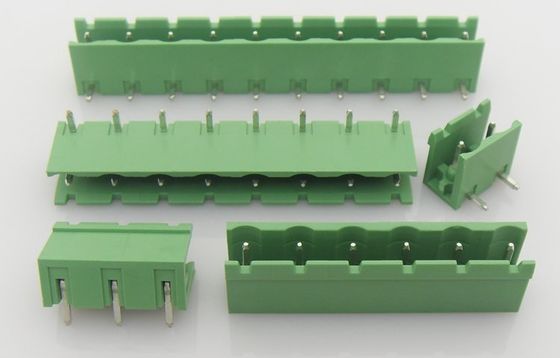

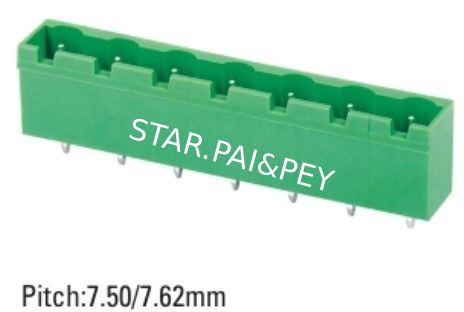

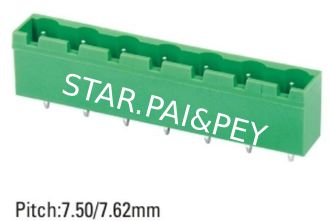

Plug-Terminal Block socket closed straight pin Pitch:7.62mm / 0.3 in
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | PA UL94-V0 | Pitch: | 7.5mm / 7.62mm |
|---|---|---|---|
| Poles Arrage: | 2-24 Poles | Color: | Green, White, Black, Red, Orange, By Customer |
| Rated Voltage: | 300V | Rated Current: | 15A |
| Technical parameters | Values (range) |
|---|---|
| UL-Technical Data | |

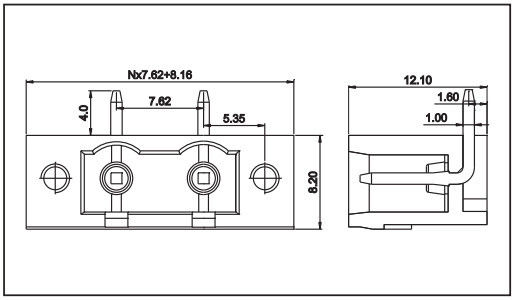

| pitch: | 7.62mm / 7.5mm |
| Rated voltage: | 300V |
| Rated current: | 15A |
| Pressure line range: | |
| IEC-Technical Data | |
| Overvoltage Category - Degree of pollution: | 3 |
| Rated voltage: | 320V,630V |
| Rated impulse voltage: | 6KV |
| Rated cross-section - rated current: | mm/18A |
| Material | |
| Insulating materials: | PA |
| Flammability rating: | UL94,V-0 |
| Contact materials: | brass |
| Contact point of coating: | Tin platted |
