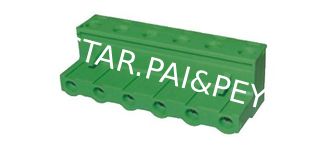

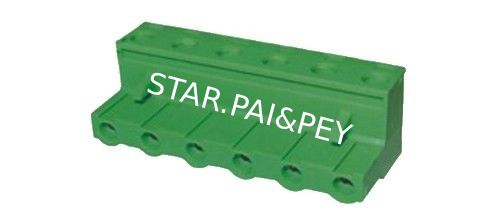

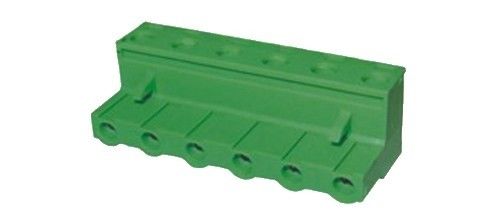

Plug-Terminal Block Head vertical connect wire Pitch:7.62mm / 0.3 in
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | PA UL94-V0 | Color: | Green, White, Black, Red, Orange, By Customer |
|---|---|---|---|
| Pitch: | 7.62mm, 7.5mm | Rated Voltage: | 300V |
| Rated Current: | 15A |

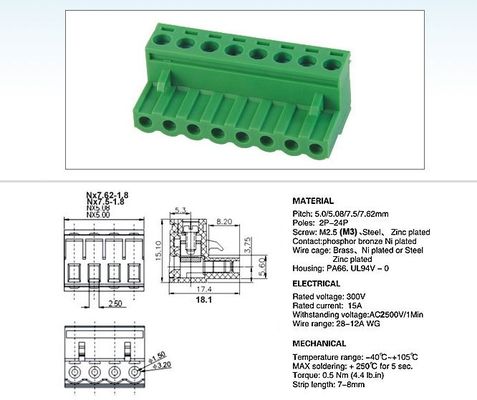

| Technical parameters | Values (range) |
|---|---|
| UL-Technical Data | |
| pitch: | 7.62mm |
| Rated voltage: | 300V |
| Rated current: | 15A |
| Pressure line range: | 12-30AWG |
| IEC-Technical Data | |
| Overvoltage Category - Degree of pollution: | 3 |
| Rated voltage: | 400V,630V,1000V |
| Rated impulse voltage: | 6KV |
| Rated cross-section - rated current: | 2.5mm/18A |
| Material | |
| Insulating materials: | PA |
| Flammability rating: | UL94,V-0 |
| Contact materials: | Brass |
| Contact point of coating: | Tin Platted |
| Other Information | |
| PCB board aperture: | |
| Strip length: | 6.5mm |
| Screws | Torque: | M3/5lbf.in |
