Home Products-Plug-in Terminal Block

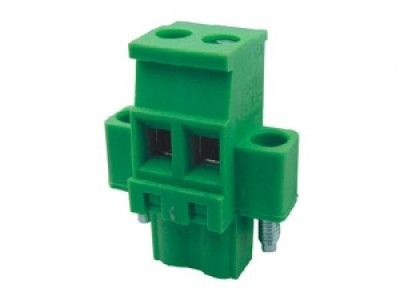

Plug-in Terminal Block with fixing screw header Pin pitch: 5.08 mm / 0.2 in

Plug-in Terminal Block with fixing screw header Pin pitch: 5.08 mm / 0.2 in

Plug-in Terminal Block with fixing screw header Pin pitch: 5.08 mm / 0.2 in
Plug-in Terminal Block with fixing screw header Pin pitch: 5.08 mm / 0.2 in Plug-in Terminal Block with fixing screw header Pin pitch: 5.08 mm / 0.2 in

Large Image :  Plug-in Terminal Block with fixing screw header Pin pitch: 5.08 mm / 0.2 in Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: STARPAI
Certification: EC,UL,Rohs
Model Number: 406-5.00/5.08-1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.96 USD/PCS
Packaging Details: Packing
Delivery Time: 25 days after 100% T/T payment
Payment Terms: T/T
Supply Ability: 100000K/pcs
Detailed Product Description



Detailed

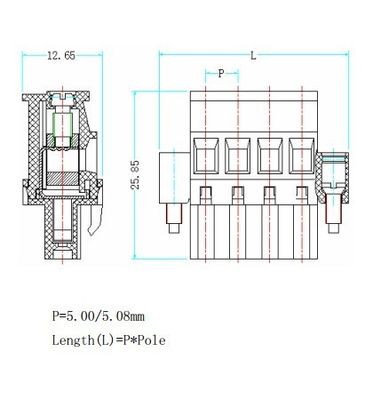

Pitch: 5.00/5.08mm
Poles: 2-24 Pin
Material: Case PA66,UL94 V-0
Contact Brass,Ni plated
Protector Phosphor bronze,Tin Plated
Screw M3,C1018 steel,Zinc plated

Electrical
Voltage 250 V
Current rating 10A
Electrical Withstanding AC2500V,1minute
Isolation resistance DC500V 500MΩ
Wire range 24-12AWG
Max Torque 4.0kgf.cm

Mechanical
Operation temperature - 33℃~+105℃
Strip length 7-8mm
