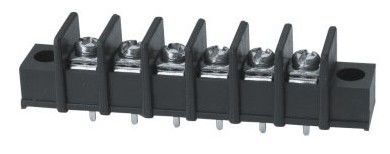

Barrier Terminal Block with fixing hole High Power Automotive Terminal Block picth 7.62mm

Barrier Terminal Block with fixing hole High Power Automotive Terminal Block picth 7.62mm

Barrier Terminal Block with fixing hole High Power Automotive Terminal Block picth 7.62mm
Barrier Terminal Block with fixing hole High Power Automotive Terminal Block picth 7.62mm

Large Image :  Barrier Terminal Block with fixing hole High Power Automotive Terminal Block picth 7.62mm Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: STARPAI
Certification: EC,UL,Rohs
Model Number: 302-2-7.62-02-1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 5.6 USD
Packaging Details: Packing
Delivery Time: 25 days after 100% T/T payment
Payment Terms: T/T before shippment
Supply Ability: 100000K/pcs
Detailed Product Description



Barrier Terminal Block with fixing hole High Power Automotive Terminal Block picth 7.62mm 0

Detailed

Pitch:7.62mm
Poles:2-24 Pin
Material
Case:PA66, UL94V-0
Conductor:Brass,Tin plated
Screw:M3.0,steel,Ni plated


Electrical
Voltage:300 V
Current rating:20A
Electrical Withstanding:AC2500V,1minute
Isolation resistance:DC500V 1000M ohm
Wire range:22-12 AWG
Max Torque:8.0kgf.cm
Mechanical
Operation temperature:- 33 - +105 Degree
Strip length:10-12mm
