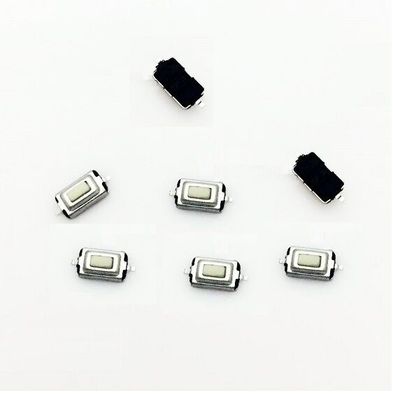

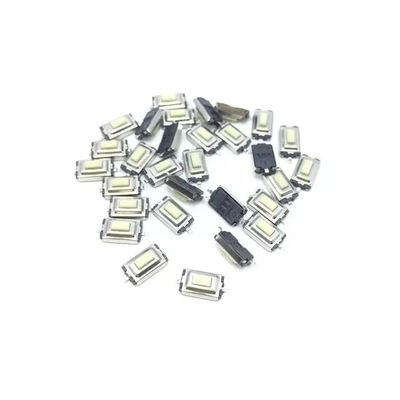

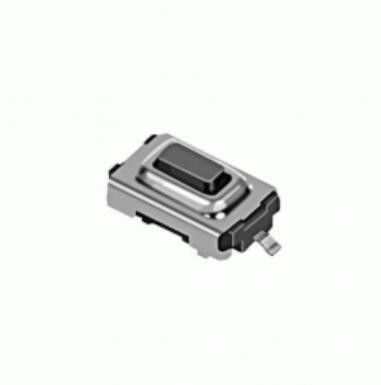

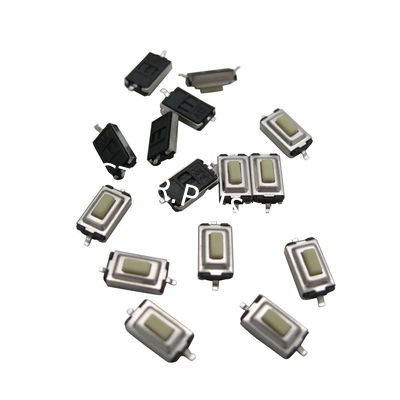

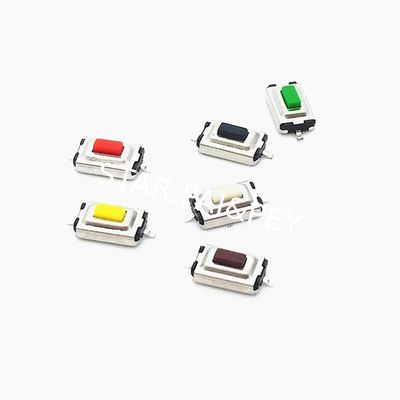

Push Button Switch 3x6x2.5mm Momentary Tact SMD SMT Pushbutton Micro Switch 2 Pin
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | PBT | Switch Voltage: | 12V |
|---|---|---|---|
| Switch Currtenly: | 0.08A | OEM/ODM: | YES |
Specifications:
Temperature: -25~85°C
Withstand Voltage: AC250V/50Hz
Rated Load: DC12V 0.1A
Contact Resistance: <=0.03ohm
Insulation Resistance: >=100Mohm
Life: 100000 time
Material: Plastic+Metal

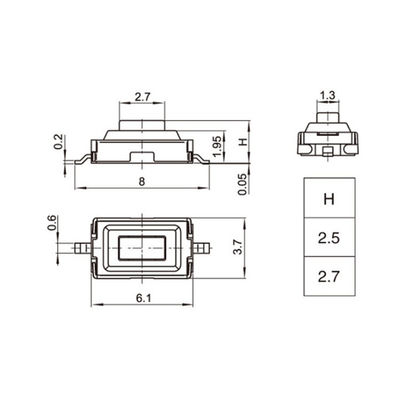

Size: 3x6x2.5mm/0.12x0.24x0.1"
Package: 3000 Pcs/1 roll packing
Note:
Please allow 0-1mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
