Plug-Terminal Block Socket straight pins Pitch :10.16 mm / 0.4 in

Large Image : Plug-Terminal Block Socket straight pins Pitch :10.16 mm / 0.4 in Get Best Price

Product Details:

Place of Origin:	shenzhen
Brand Name:	starpai
Certification:	UL,Rohs
Model Number:	404-10.16-202/001-3

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	us 0.2 - us 1.0
Packaging Details:	bag
Delivery Time:	15- 25 work days
Payment Terms:	T/T
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Material:	PA UL 94-V0	Pitch:	10.16mm
Poles Arrage:	2-24 Poles	Rated Voltage:	300V
Rated Current:	60A	Color:	Green Or By Customer

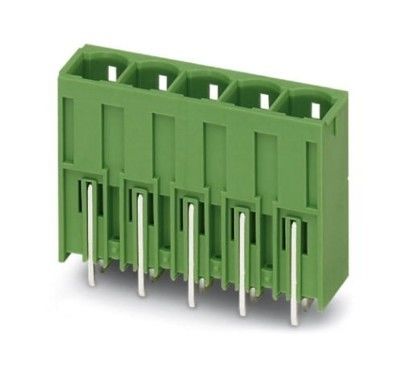

Plug-Terminal Block Socket straight pins Pitch :10.16 mm / 0.4 in 0

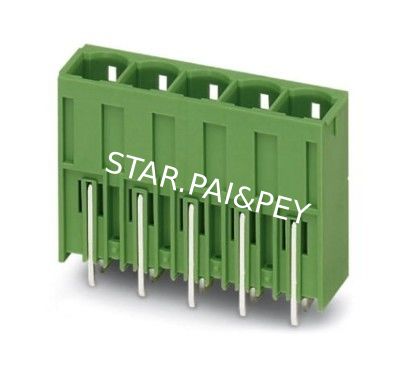

Plug-Terminal Block Socket straight pins Pitch :10.16 mm / 0.4 in 1

Detailed Product Description

Materials and specifications
Plastic parts: PA66 UL94V - 0
Terminal: brass, Tin plating
Spring: steel

performance

Pitch:10.16mm
Rated voltage/current: 300 V/ 60A
Temperature: - 40 ℃ ~ + 105 ℃
The withstand voltage: AC1500V/Min
Insulation resistance: 500 mΩ / DC500V
