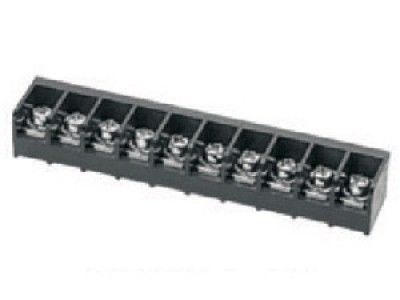

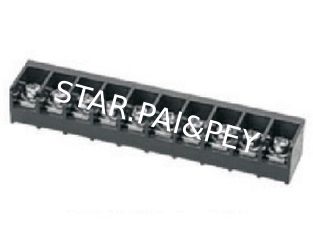

Barrier Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 8.255mm Pitch and 2 to 30 Poles

Large Image : Barrier Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 8.255mm Pitch and 2 to 30 Poles Get Best Price

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	STARPAI
Certification:	EC,UL,Rohs
Model Number:	303-6-8.255

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	1 usd
Packaging Details:	Packing
Delivery Time:	25 days after 100% T/T payment
Payment Terms:	T/T
Supply Ability:	100000K/pcs

Contact Now

Detailed Product Description

High Light:

Barrier Terminal Block

Terminal Block

PCB connector

Detailed

Material
Pitch	8.255mm
Poles	2-24 Pin
Case	PA66+15%GF
Conductor	Brass,Tin plated
Screw	M3,C1018 steel,Ni plated

Electrical
Voltage	300 V
Current rating	20A
Electrical Withstanding	AC2500V,1minute
Isolation resistance	DC500V 1000MΩ
Wire range	22-12 AWG
Max Torque	4kgf.cm
Mechanical
Operation temperature	- 33℃～+105℃
Strip length	8-10mm
