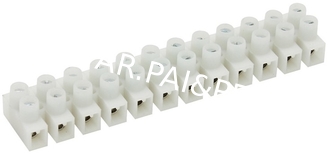

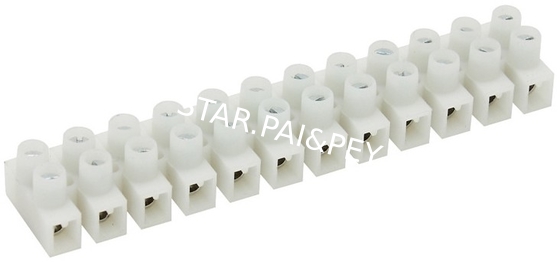

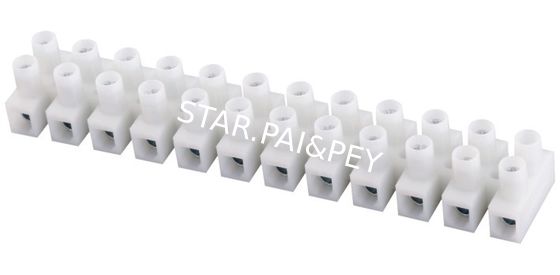

Europe Feed Through Terminal Block without wire protector PH16 Pin pitch: 16.0mm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Europe Terminal Block,Terminal Block,Connector |
||
|---|---|---|---|
|
Materials and specifications
Pitch:16.0 mm Wire range:20-12 AWG |
| Model | Wire mm² | UL | ICE | Screw | Dimensions(mm/in) | ||||||||
| Volt | Amp | Volt | Amp | Unit | A | B | C | D | E | F | |||
| PH8 | 2.5 | 600V | 20A | 450V | 24A | M2.5x5 | mm | 94.0 | 17.0 | 17.30 | 8.20 | 3.00 | 2.80 |
| PH10 | 6.0 | 600V | 28A | 750V | 24A | M3.0x6 | mm | 116.7 | 20.3 | 20.30 | 10.00 | 3.50 | 3.20 |
| PH12 | 6.0 | 600V | 41A | 750V | 45A | M3.5x7 | mm | 139.7 | 24.0 | 22.10 | 12.00 | 3.90 | 3.90 |
| PH14 | 10.0 | 600V | 50A | 750V | 57A | M4.0x9 | mm | 157.9 | 25.4 | 27.90 | 13.50 | 4.30 | 4.60 |
| PH16 | 16.0 | 600V | 65A | 750V | 76A | M4.0x9 | mm | 171.3 | 32.0 | 28.10 | 14.60 | 4.40 | 4.80 |
If you can't find the exact product you need in the pictures, please don't go away.
Just contact us freely or send your sample and drawing to us.
We will reply you as soon as possible.
